Sandvik Coromant

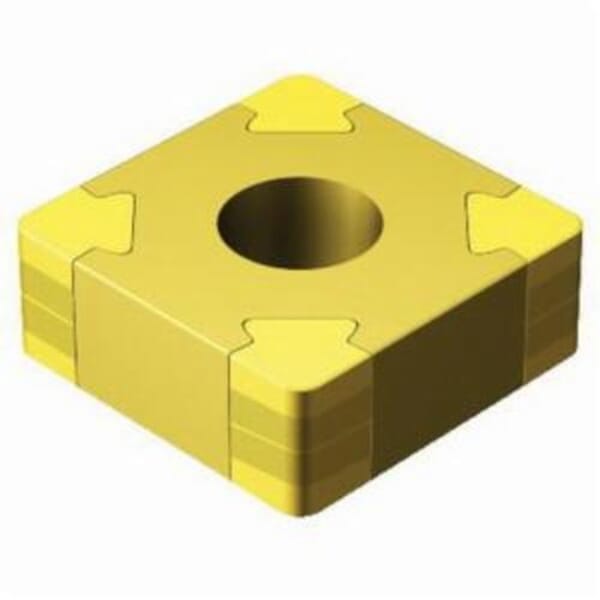

Sandvik Coromant 5908117 T-Max P Turning Insert, ANSI Code: SNGA432T0320B 7525, SNGA Insert, Material Grade: H, K, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steel and Cast Iron, Carbide

ManufacturerSandvik Coromant

Part #826208117

MFG #5908117

Sandvik Coromant Turning Insert, Series: T-Max P, SNGA Insert, 432 Insert, Squared, 0.8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, SF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 7525, ANSI Code: SNGA432T0320B 7525, ISO Code: SNGA120408T01020B 7525, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, For Use On: Hardened Steel and Cast Iron

$363.78

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: SNGA432T0320B 7525

Chipbreaker: SF

Corner Radius: 0.0312 in

Country of Origin: PL

Cutting Direction: Neutral

Finish: PVD-TiN Coated

For Use On: Hardened Steel and Cast Iron

Hole Diameter: 0.2029 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: SNGA

ISO Code: SNGA120408T01020B 7525

Length: 1/2 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 7525

Material: Carbide

Material Grade: H, K

Maximum Depth of Cut: 0.8 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Series: T-Max P

Shape: Squared

Thickness: 0.187 in

Width: 1/2 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, SNGA Insert, 432 Insert, Squared, 0.8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, SF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 7525, ANSI Code: SNGA432T0320B 7525, ISO Code: SNGA120408T01020B 7525, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, For Use On: Hardened Steel and Cast Iron

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: SNGA432T0320B 7525

Chipbreaker: SF

Corner Radius: 0.0312 in

Country of Origin: PL

Cutting Direction: Neutral

Finish: PVD-TiN Coated

For Use On: Hardened Steel and Cast Iron

Hole Diameter: 0.2029 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: SNGA

ISO Code: SNGA120408T01020B 7525

Length: 1/2 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 7525

Material: Carbide

Material Grade: H, K

Maximum Depth of Cut: 0.8 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Series: T-Max P

Shape: Squared

Thickness: 0.187 in

Width: 1/2 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, SNGA Insert, 432 Insert, Squared, 0.8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, SF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 7525, ANSI Code: SNGA432T0320B 7525, ISO Code: SNGA120408T01020B 7525, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, For Use On: Hardened Steel and Cast Iron
