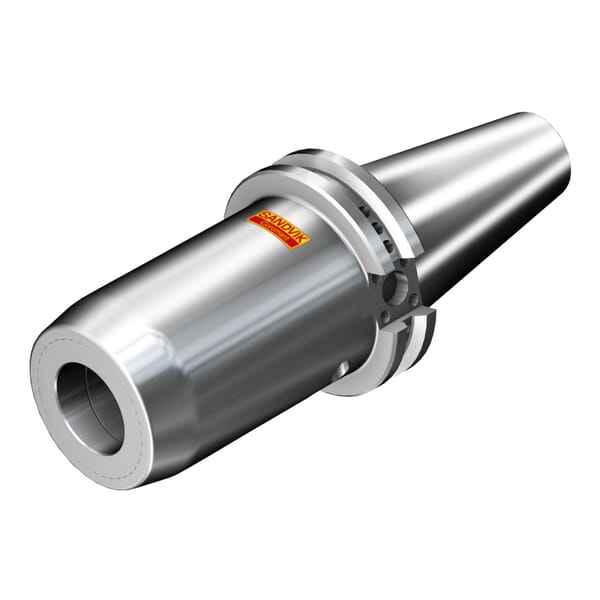

Sandvik Coromant 7105377 CoroChuck 930 High Precision Slender Design Hydraulic Tool Holder and Chuck, CAT Taper Shank, V50 Connection, 0.984 in Dia Hole, 1.772 in Dia Nose, 3.74 in Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 7105377 CoroChuck 930 High Precision Slender Design Hydraulic Tool Holder and Chuck, CAT Taper Shank, V50 Connection, 0.984 in Dia Hole, 1.772 in Dia Nose, 3.74 in Projection

ManufacturerSandvik Coromant

Part #826205377

MFG #7105377

Sandvik Coromant Hydraulic Tool Holder and Chuck, High Precision Slender Design, Series: DWRRB, V50, CAT Taper Shank, CAT50 Taper, 0.984 in Hole Dia, 1.772 in Nose Dia, 3.74 in Projection, 2.244 in Clamping Depth, System Size Machine Side: V50, ANSI Code: 930-V50-S-25-095, ISO Code: 930-V50-S-25-095, Yes Through Coolant (Yes/No)

$1,259.25

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-V50-S-25-095

Clamping Depth: 2.244 in

Connection Size: V50

Country of Origin: DE

Hole Diameter: 0.984 in

ISO Code: 930-V50-S-25-095

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1.772 in

Projection: 3.74 in

Series: CoroChuck 930

Shank Type: CAT Taper, CAT-V

System Size Machine Side: V50

Taper Size: CAT50

Through Coolant (Yes/No): Yes

Type: High Precision Slender Design

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829081 Clamping Screw

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

DIN 69888

With the best pull out security on the market, this chuck is designed to eliminate vibration for excellent stability and accessibility in all milling and drilling operations. Covering all machine interfaces, CoroChuck 930 helps to maintain efficient production through quick and easy tool setups and changes.

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829081 Clamping Screw

Video Link

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-V50-S-25-095

Clamping Depth: 2.244 in

Connection Size: V50

Country of Origin: DE

Hole Diameter: 0.984 in

ISO Code: 930-V50-S-25-095

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1.772 in

Projection: 3.74 in

Series: CoroChuck 930

Shank Type: CAT Taper, CAT-V

System Size Machine Side: V50

Taper Size: CAT50

Through Coolant (Yes/No): Yes

Type: High Precision Slender Design

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829081 Clamping Screw

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

DIN 69888

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829081 Clamping Screw

Video Link
