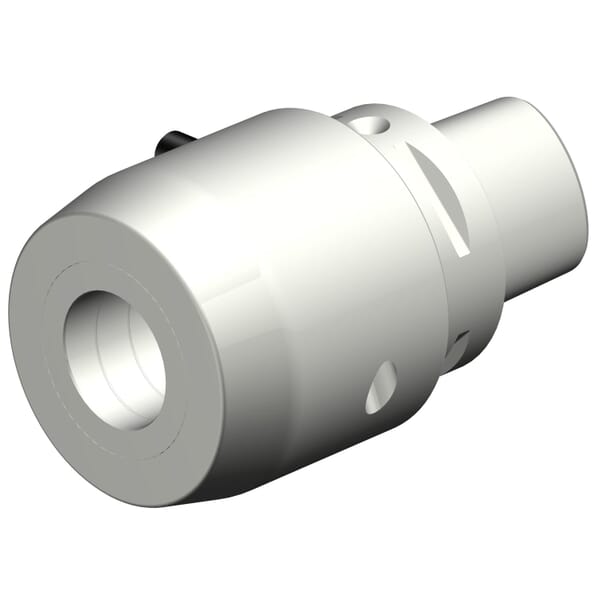

Sandvik Coromant 7105365 CoroChuck 930 Heavy Duty High Precision Hydraulic Tool Holder and Chuck, Coromant Capto Shank, C6 Connection, 1-1/4 in Dia Hole, 2.677 in Dia Nose, 3.583 in Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 7105365 CoroChuck 930 Heavy Duty High Precision Hydraulic Tool Holder and Chuck, Coromant Capto Shank, C6 Connection, 1-1/4 in Dia Hole, 2.677 in Dia Nose, 3.583 in Projection

ManufacturerSandvik Coromant

Part #826205365

MFG #7105365

Sandvik Coromant Hydraulic Tool Holder and Chuck, Heavy Duty High Precision, Series: CoroChuck 930, C6 Connection, Coromant Capto Shank, 2.48 in Taper, 1-1/4 in Diameter Hole, 2.677 in Diameter Nose, 3.583 in Projection, 2.402 in Clamping Depth, System Size Machine Side: C6, ANSI Code: 930-C6-HD-A31-091, ISO Code: 930-C6-HD-A31-091, Yes Through Coolant

$1,293.32

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-C6-HD-A31-091

Clamping Depth: 2.402 in

Connection Size: C6

Country of Origin: DE

Hole Diameter: 1-1/4 in

ISO Code: 930-C6-HD-A31-091

Manufacturer Name: Sandvik Coromant

Nose Diameter: 2.677 in

Projection: 3.583 in

Series: CoroChuck 930

Shank Type: Coromant Capto

System Size Machine Side: C6

Taper Size: 2.48 in

Through Coolant (Yes/No): Yes

Type: Heavy Duty High Precision

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829083 Clamping Screw

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829083 Clamping Screw

DIN 69888

For stable machining in milling and drilling applications

Video Link

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-C6-HD-A31-091

Clamping Depth: 2.402 in

Connection Size: C6

Country of Origin: DE

Hole Diameter: 1-1/4 in

ISO Code: 930-C6-HD-A31-091

Manufacturer Name: Sandvik Coromant

Nose Diameter: 2.677 in

Projection: 3.583 in

Series: CoroChuck 930

Shank Type: Coromant Capto

System Size Machine Side: C6

Taper Size: 2.48 in

Through Coolant (Yes/No): Yes

Type: Heavy Duty High Precision

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829083 Clamping Screw

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829083 Clamping Screw

DIN 69888

For stable machining in milling and drilling applications
