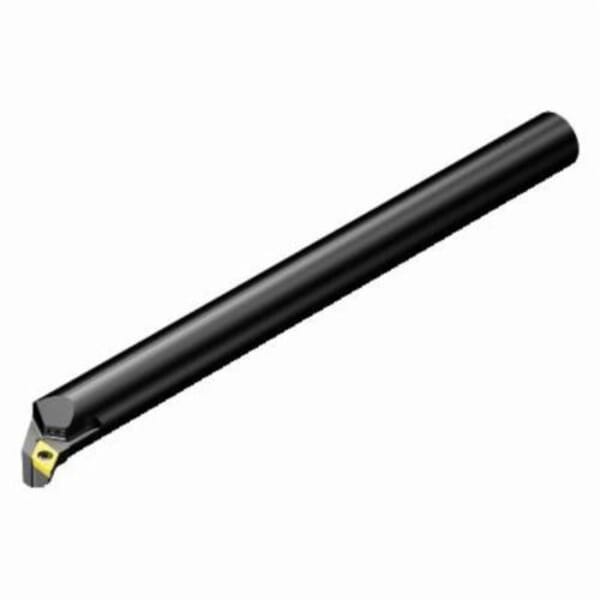

Sandvik Coromant 6404516 CoroTurn 107 Indexable Boring Bar, A..SDUCL..HP-R Toolholder, 1.26 in Dia Min Bore, Left Hand of Holder, 11.811 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6404516 CoroTurn 107 Indexable Boring Bar, A..SDUCL..HP-R Toolholder, 1.26 in Dia Min Bore, Left Hand of Holder, 11.811 in OAL

ManufacturerSandvik Coromant

Part #826204516

MFG #6404516

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 1.26 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.984 in Shank Dia, Cylindrical Shank, Left Hand of Holder, A..SDUCL..HP-R Toolholder Type, Insert Compatibility: DCMT 11 T3 08, DCMT 3(2.5)2, 55 deg Diamond Insert, 3/8 in Inscribed Circle, 5763169 Insert Screw, 0.156 in Insert Thickness, Steel, Yes Through Coolant (Yes/No)

$469.63

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Left

Inscribed Circle: 3/8 in

Insert Compatibility: DCMT 11 T3 08, DCMT 3(2.5)2

Insert Screw: 5763169

Insert Shape: 55 deg Diamond, 55 deg Diamond/Rhombic

Insert Thickness: 0.156 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 3.937 in

Minimum Bore Diameter: 1.26 in

Overall Length: 11.811 in

Series: CoroTurn 107

Shank Diameter: 0.984 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: A..SDUCL..HP-R

Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

5763169 Insert Screw, 5764130 Key and 5764280 Nozzle

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 1.26 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.984 in Shank Dia, Cylindrical Shank, Left Hand of Holder, A..SDUCL..HP-R Toolholder Type, Insert Compatibility: DCMT 11 T3 08, DCMT 3(2.5)2, 55 deg Diamond/Rhombic Insert, 3/8 in Inscribed Circle, 5763169 Insert Screw, 0.156 in Insert Thickness, Steel, Yes Through Coolant (Yes/No)

5763169 Insert Screw, 5764130 Key and 5764280 Nozzle

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Left

Inscribed Circle: 3/8 in

Insert Compatibility: DCMT 11 T3 08, DCMT 3(2.5)2

Insert Screw: 5763169

Insert Shape: 55 deg Diamond, 55 deg Diamond/Rhombic

Insert Thickness: 0.156 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 3.937 in

Minimum Bore Diameter: 1.26 in

Overall Length: 11.811 in

Series: CoroTurn 107

Shank Diameter: 0.984 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: A..SDUCL..HP-R

Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

5763169 Insert Screw, 5764130 Key and 5764280 Nozzle

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 1.26 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.984 in Shank Dia, Cylindrical Shank, Left Hand of Holder, A..SDUCL..HP-R Toolholder Type, Insert Compatibility: DCMT 11 T3 08, DCMT 3(2.5)2, 55 deg Diamond/Rhombic Insert, 3/8 in Inscribed Circle, 5763169 Insert Screw, 0.156 in Insert Thickness, Steel, Yes Through Coolant (Yes/No)

5763169 Insert Screw, 5764130 Key and 5764280 Nozzle
