Pramet 6798527 Turning Insert, ANSI Code: CNMX 6-10SN-TF:T9315, CNMX Insert, Material Grade: H, K, P, 191140 Insert, Diamond Shape, 19 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816098527

MFG #6798527

UPC #3603602991515

Pramet Turning Insert, CNMX Insert, 191140 Insert, Diamond, 7 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 11 mm Thickness, 19.3 mm Length, 19 Seat, Negative Rake, TF Chipbreaker, 4 mm Corner Radius, 7.75 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: CNMX 6-10SN-TF:T9315, ISO Code: CNMX 191140SN-TF:T9315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, MT-CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

$28.55

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMX 6-10SN-TF:T9315

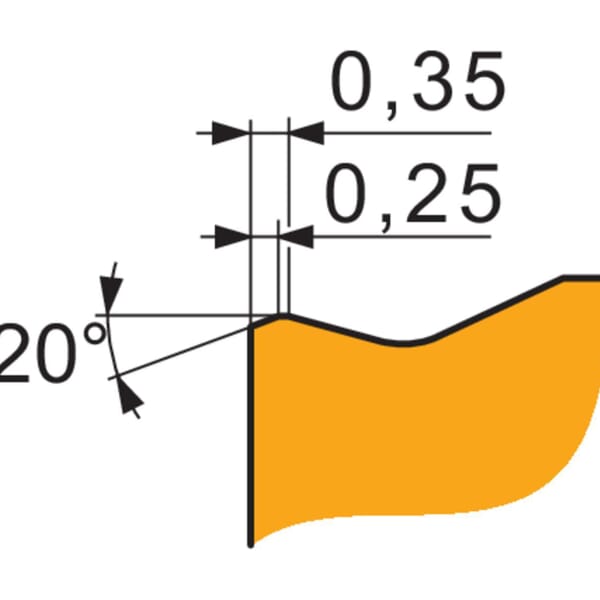

Chipbreaker: TF

Corner Radius: 4 mm

Country of Origin: CZ

Finish: MT-CVD-Al2O3 Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 7.75 mm

Included Angle: 80 deg

Inscribed Circle: 19.05 mm

Insert Size: 191140

Insert Style: CNMX

ISO Code: CNMX 191140SN-TF:T9315

Length: 19.3 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 7 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Shape: Diamond

Thickness: 11 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

Finishing and Roughing

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Specification Sheet

Manufacturer Name: Dormer Pramet

ANSI Code: CNMX 6-10SN-TF:T9315

Chipbreaker: TF

Corner Radius: 4 mm

Country of Origin: CZ

Finish: MT-CVD-Al2O3 Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 7.75 mm

Included Angle: 80 deg

Inscribed Circle: 19.05 mm

Insert Size: 191140

Insert Style: CNMX

ISO Code: CNMX 191140SN-TF:T9315

Length: 19.3 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 7 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Shape: Diamond

Thickness: 11 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

Finishing and Roughing

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Specification Sheet
