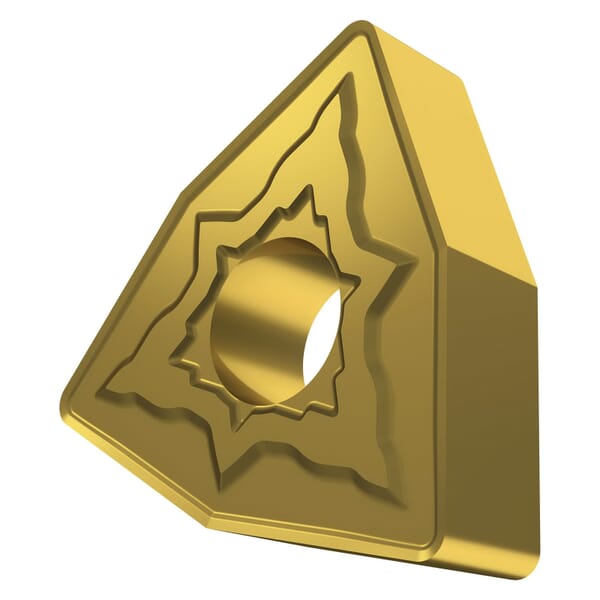

Pramet 7038130 Turning Insert, ANSI Code: WNMG 431-NMR T8330, WNMG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Trigon Shape, 8 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

ManufacturerPramet

Part #816098130

MFG #7038130

UPC #3603603112070

Pramet Turning Insert, WNMG Insert, 431 Insert, Trigon, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 4.76 mm Thickness, 8 Seat, Negative Rake, NMR Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T8330, ANSI Code: WNMG 431-NMR T8330, ISO Code: WNMG 080404E-NMR T8330, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

$11.12

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: WNMG 431-NMR T8330

Chipbreaker: NMR

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 431

Insert Style: WNMG

ISO Code: WNMG 080404E-NMR T8330

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 8

Shape: Trigon

Thickness: 4.76 mm

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions
Extremely universal cutting geometry, generates a very low cutting force and has good stability
Suitable for slightly interrupted cut
Cutting geometry particularly suited to parting and grooving
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on both sides
NMR chipbreaker - comprehensive offer of double-sided chipbreakers for turning stainless steels
High productivity, due to higher metal removal rates
Predictable insert behavior
Increased reliability thanks to advanced cutting edge strength with protective peripheral land
Ideal for heavy and less stable conditions
Positive geometry with a protective land
Medium to roughing operations
Suitable for longitudinal and face turning with high stock removal

Pramet Turning Insert, WNMG Insert, 431 Insert, Trigon, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 4.76 mm Thickness, 8 Seat, Negative Rake, NMR Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T8330, ANSI Code: WNMG 431-NMR T8330, ISO Code: WNMG 080404E-NMR T8330, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys
