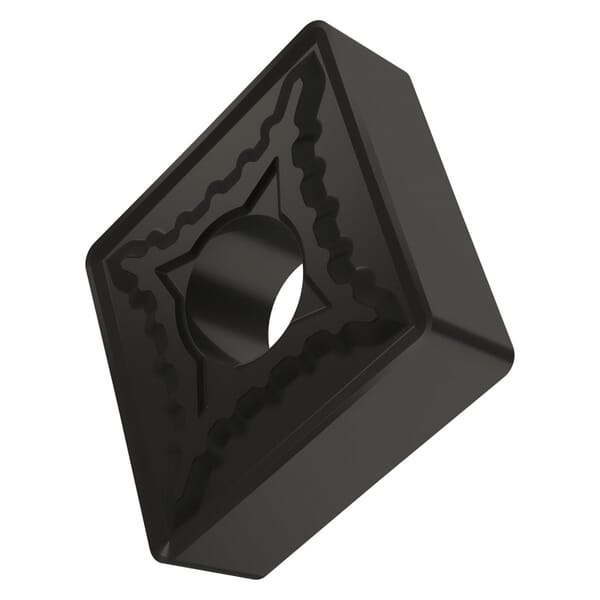

Pramet 6915806 Turning Insert, ANSI Code: CNMG 542-SM:T7335, CNMG Insert, Material Grade: M, P, S, 542 Insert, Diamond Shape, 16 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T7335

ManufacturerPramet

Part #816095806

MFG #6915806

UPC #3603603069169

Pramet Turning Insert, CNMG Insert, 542 Insert, Diamond, 5 mm Maximum Depth of Cut, 15.875 mm Inscribed Circle, 6.35 mm Thickness, 16.1 mm Length, 16 Seat, Negative Rake, SM Chipbreaker, 0.8 mm Corner Radius, 6.35 mm Hole Dia, Manufacturers Grade: T7335, ANSI Code: CNMG 542-SM:T7335, ISO Code: CNMG 160608E-SM:T7335, 80 deg Included Angle, 0 deg Relief Angle, Carbide, MT-CVD Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys

$17.43

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 542-SM:T7335

Chipbreaker: SM

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: MT-CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 6.35 mm

Included Angle: 80 deg

Inscribed Circle: 15.875 mm

Insert Size: 542

Insert Style: CNMG

ISO Code: CNMG 160608E-SM:T7335

Length: 16.1 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T7335

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 16

Shape: Diamond

Thickness: 6.35 mm

T7335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
Relatively thin coating applied with the MT-CVD method
Material shows very high strength
Special surface finish for coating
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions

Medium Machining Applications
