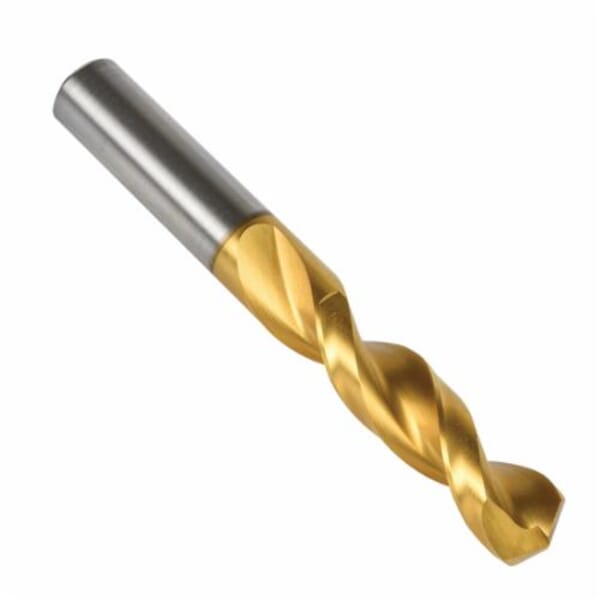

Precision Twist Drill 5996869 QC41G General Purpose Heavy Duty Screw Machine Drill, #29 Drill - Wire, 0.136 in Drill - Decimal Inch, HSS, TiN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Precision Twist Drill 5996869 QC41G General Purpose Heavy Duty Screw Machine Drill, #29 Drill - Wire, 0.136 in Drill - Decimal Inch, HSS, TiN Coated

ManufacturerPrecision Twist Drill

Part #816061429

MFG #061429

UPC #086071614292

Precision Twist Drill Screw Machine Drill, General Purpose Heavy Duty, Series: QC41G, Imperial, #29 Drill - Wire, 0.136 in Drill - Decimal Inch, 1-15/16 in Overall Length, 3XD Cutting Depth, 2 Flutes, Parabolic Flute, 15/16 in Flute Length, 29 mm Shank, Straight Shank, 135 deg Point, Radius Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, TiN Coated, Gold, Applicable Materials: Alloy Steel, Brass, Bronze, Copper, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Lamellar Graphite, Martensitic, Magnetic Soft Steel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Unalloyed Nickel

Price Not Available

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Color: Gold

Country of Origin: FR

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.136 in

Drill Size - Wire: #29

Finish: TiN Coated

Flute Length: 15/16 in

Flute Type: Parabolic

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 1-15/16 in

Point Angle: 135 deg

Point Type: Radius Split

Series: QC41G

Shank Size: 29 mm

Shank Type: Straight

Type: General Purpose Heavy Duty

Heavy duty parabolic flute design for efficient chip removal, allows greater drilling depths in one pass
Low thrust design self-centering split point for easier penetration
TiN coating increases wear resistance and improves tool life

For efficient chip removal

ANSI Specified|CSA Approved

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Color: Gold

Country of Origin: FR

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.136 in

Drill Size - Wire: #29

Finish: TiN Coated

Flute Length: 15/16 in

Flute Type: Parabolic

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 1-15/16 in

Point Angle: 135 deg

Point Type: Radius Split

Series: QC41G

Shank Size: 29 mm

Shank Type: Straight

Type: General Purpose Heavy Duty

Heavy duty parabolic flute design for efficient chip removal, allows greater drilling depths in one pass
Low thrust design self-centering split point for easier penetration
TiN coating increases wear resistance and improves tool life

For efficient chip removal

ANSI Specified|CSA Approved
