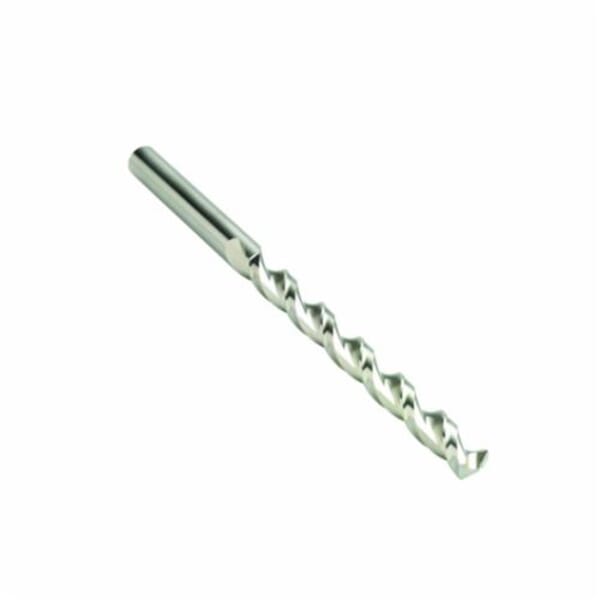

Dormer 5973223 A940 Long Length Premium Quick Helix High Performance Drill, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 171 mm OAL, HSS-E, Bright

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5973223 A940 Long Length Premium Quick Helix High Performance Drill, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 171 mm OAL, HSS-E, Bright

ManufacturerDormer

Part #816058695

MFG #0058695

UPC #7320760058695

Dormer High Performance Drill, Long Length Premium Quick Helix, Series: A940, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 171 mm Overall Length, 10XD Cutting Depth, 2 Flutes, Quick-Spiral Flute, 108 mm Flute Length, 3/8 in Shank, Straight Shank, 130 deg Point, PFX Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bright, Applicable Materials: Magnetic Soft Steel, Alloy Steel, Lamellar Graphite, Aluminum, Magnesium, Unalloyed and Copper

$55.25

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Magnetic Soft Steel, Alloy Steel, Lamellar Graphite, Aluminum, Magnesium, Unalloyed and Copper

Country of Origin: FR

Cutting Depth: 10XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Size - Decimal Inch: 0.375 in

Drill Size - Fraction: 3/8 in

Finish: Bright

Flute Length: 108 mm

Flute Type: Quick-Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 171 mm

Point Angle: 130 deg

Point Type: PFX

Series: A940

Shank Size: 3/8 in

Shank Type: Straight

Type: Long Length Premium Quick Helix

Cobalt is harder than high speed steel and provides better wear-resistance
It is commonly used on high tensile alloys
Bright provides a smooth, polished finish on the tool
It increases chip flow in softer materials such as aluminum, wood and plasticspiral flutes are constructed of a higher flute angle to remove chips easier
Web-thinned
Parallel web configuration
No coolant channel

ANSI/DIN Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

For general drilling applications

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Applicable Materials: Magnetic Soft Steel, Alloy Steel, Lamellar Graphite, Aluminum, Magnesium, Unalloyed and Copper

Country of Origin: FR

Cutting Depth: 10XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Size - Decimal Inch: 0.375 in

Drill Size - Fraction: 3/8 in

Finish: Bright

Flute Length: 108 mm

Flute Type: Quick-Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 171 mm

Point Angle: 130 deg

Point Type: PFX

Series: A940

Shank Size: 3/8 in

Shank Type: Straight

Type: Long Length Premium Quick Helix

Cobalt is harder than high speed steel and provides better wear-resistance
It is commonly used on high tensile alloys
Bright provides a smooth, polished finish on the tool
It increases chip flow in softer materials such as aluminum, wood and plasticspiral flutes are constructed of a higher flute angle to remove chips easier
Web-thinned
Parallel web configuration
No coolant channel

ANSI/DIN Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

For general drilling applications

Specification Sheet

Catalog
