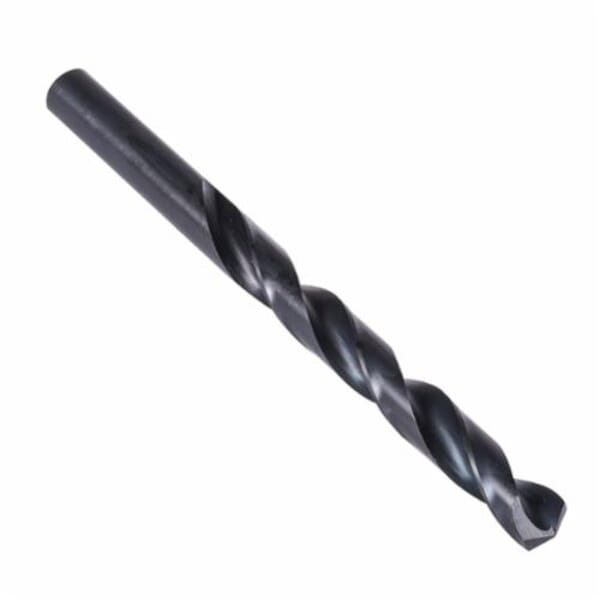

Precision Twist Drill 6001302 501-6 1-Stage Type B Heavy Duty Aircraft Extension Drill, #50 Drill - Wire, 0.07 in Drill - Decimal Inch, 135 deg Point, HSS

ManufacturerPrecision Twist Drill

Part #816058150

MFG #6001302

UPC #086071581501

Precision Twist Drill Aircraft Extension Drill, 1-Stage Type B Heavy Duty, Series: 501-6, #50 Drill - Wire, 0.07 in Drill - Decimal Inch, 6 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1 in Flute Length, 0.07 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Nickel

$5.28

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Nickel

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Size - Decimal Inch: 0.07 in

Drill Size - Wire: #50

Finish: Steam Oxide

Flute Length: 1 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 6 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: 501-6

Shank Size: 0.07 in

Shank Type: Straight

Type: 1-Stage Type B Heavy Duty

High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
Oxide prevents chip building, galling and welding on the work piece, it is commonly used on low carbons, stainless steel and ferrous metals web-thinned
Tapered web configuration
No coolant channel

For general drilling applications

ANSI Specified|NAS 907|CSA Approved
