Pramet 6756265 Turning Insert, ANSI Code: VBMT 331-UR TT310, VBMT Insert, Material Grade: M, P, 331 Insert, Diamond Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: TT310

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6756265 Turning Insert, ANSI Code: VBMT 331-UR TT310, VBMT Insert, Material Grade: M, P, 331 Insert, Diamond Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: TT310

ManufacturerPramet

Part #816056265

MFG #6756265

UPC #3603602916310

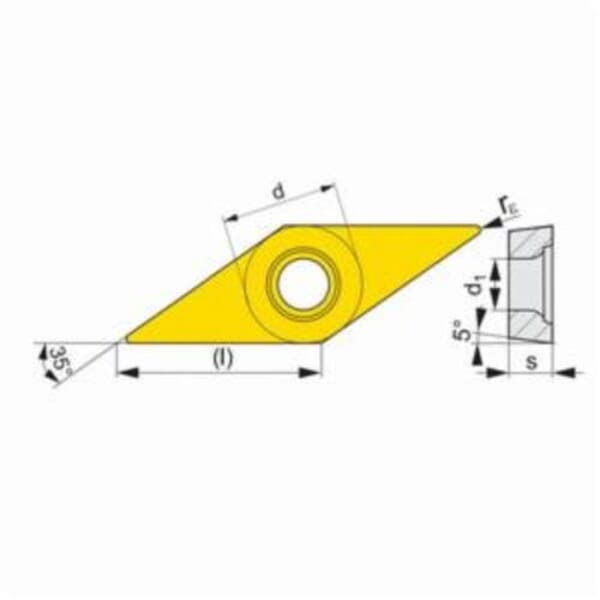

Pramet Turning Insert, VBMT Insert, 331 Insert, Diamond, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3/16 in Thickness, 16.6 mm Length, 16 Seat, Positive Rake, UR Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: TT310, ANSI Code: VBMT 331-UR TT310, ISO Code: VBMT 160404E-UR TT310, 35 deg Included Angle, 5 deg Relief Angle, Carbide, Cermet Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

$12.58

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: VBMT 331-UR TT310

Chipbreaker: UR

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: Cermet Coated

For Use On: Stainless Steel and Steel

Hole Diameter: 4.5 mm

Included Angle: 35 deg

Inscribed Circle: 9.525 mm

Insert Size: 331

Insert Style: VBMT

ISO Code: VBMT 160404E-UR TT310

Length: 16.6 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: TT310

Material: Carbide

Material Grade: M, P

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 5 deg

Seat Size: 16

Shape: Diamond

Thickness: 3/16 in

TT310 grade special material designed especially for finishing work
Cermet based substrate with high abrasion resistance and good thermal and chemical stability
TiAlN based nano-layered PVD coating equipped with an end gold layer of TiN for abrasion indication
Medium to high cutting speeds
0.05 to 0.13 mm inscribed circle tolerance
+/-0.13 mm thickness tolerance
Gold color
0.08 to 0.2 mm/rev cutting feed
Rounded edge
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on one side only

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Medium to High Cutting Speeds Applications

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: VBMT 331-UR TT310

Chipbreaker: UR

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: Cermet Coated

For Use On: Stainless Steel and Steel

Hole Diameter: 4.5 mm

Included Angle: 35 deg

Inscribed Circle: 9.525 mm

Insert Size: 331

Insert Style: VBMT

ISO Code: VBMT 160404E-UR TT310

Length: 16.6 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: TT310

Material: Carbide

Material Grade: M, P

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 5 deg

Seat Size: 16

Shape: Diamond

Thickness: 3/16 in

TT310 grade special material designed especially for finishing work
Cermet based substrate with high abrasion resistance and good thermal and chemical stability
TiAlN based nano-layered PVD coating equipped with an end gold layer of TiN for abrasion indication
Medium to high cutting speeds
0.05 to 0.13 mm inscribed circle tolerance
+/-0.13 mm thickness tolerance
Gold color
0.08 to 0.2 mm/rev cutting feed
Rounded edge
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on one side only

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Medium to High Cutting Speeds Applications

Catalog
