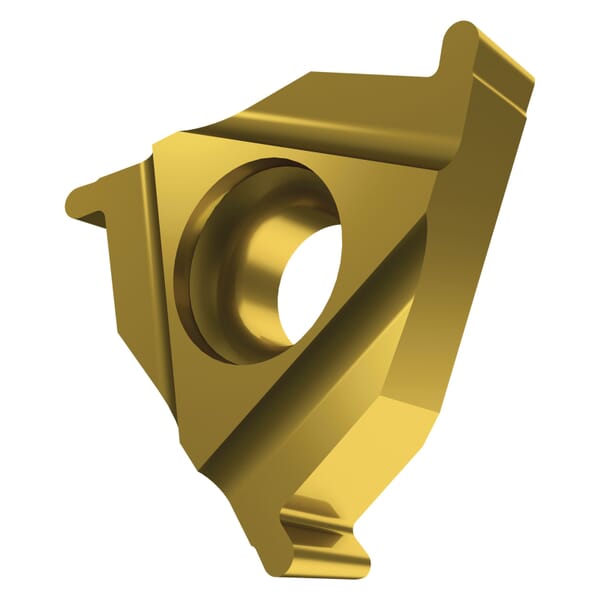

Pramet 6755977 External Grooving Insert, Triangular Shape, TN Insert, Left Hand Cutting, 0.039 in W Cutting, Manufacturers Grade: T8330, PVD Coated, Material Grade: H, K, M, N, P, S

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6755977 External Grooving Insert, Triangular Shape, TN Insert, Left Hand Cutting, 0.039 in W Cutting, Manufacturers Grade: T8330, PVD Coated, Material Grade: H, K, M, N, P, S

ManufacturerPramet

Part #816055977

MFG #6755977

UPC #3603602913432

Pramet Grooving Insert, External, TN Insert, Triangular Shape, 0.039 in Cutting Width, 0.051 in Maximum Depth of Cut, R050 Chipbreaker, 0.02 in Corner Radius, Negative Rake, 0.138 in Thickness, 0.154 in Diameter Hole, Manufacturers Grade: T8330, ISO Code: TN 16EL-R050 T8330, Left Hand Cutting Direction, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S

$29.57

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Dormer Pramet
Chipbreaker: R050
Corner Radius: 0.02 in
Country of Origin: CZ
Cutting Direction: Left Hand
Cutting Width: 0.039 in
Finish: PVD Coated
Hole Diameter: 0.154 in
Insert Style: TN
ISO Code: TN 16EL-R050 T8330
Manufacturer Name: Dormer Pramet
Manufacturers Grade: T8330
Material: Carbide
Material Grade: H, K, M, N, P, S
Maximum Depth of Cut: 0.051 in
Rake: Negative
Shape: Triangular
Thickness: 0.138 in
Type: External
: Single-sided o-ring grooving insert, triangular with an inscribed circle diameter of 9.525 mm, for left hand cutting making cylindrical O.D. grooves with 0.5 mm radius, T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron.
: PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
: Catalog

: Manufacturer Name: Dormer Pramet
Chipbreaker: R050
Corner Radius: 0.02 in
Country of Origin: CZ
Cutting Direction: Left Hand
Cutting Width: 0.039 in
Finish: PVD Coated
Hole Diameter: 0.154 in
Insert Style: TN
ISO Code: TN 16EL-R050 T8330
Manufacturer Name: Dormer Pramet
Manufacturers Grade: T8330
Material: Carbide
Material Grade: H, K, M, N, P, S
Maximum Depth of Cut: 0.051 in
Rake: Negative
Shape: Triangular
Thickness: 0.138 in
Type: External
: Single-sided o-ring grooving insert, triangular with an inscribed circle diameter of 9.525 mm, for left hand cutting making cylindrical O.D. grooves with 0.5 mm radius, T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron.
: PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
: Catalog
