Pramet 6755858 Turning Insert, ANSI Code: SNMA 433:T5305, SNMA Insert, Material Grade: H, K, P, 433 Insert, Squared Shape, 12 Seat, Negative Rake, For Use On Steel, Cast Iron and Hardened Steel, Carbide, Manufacturers Grade: T5305

ManufacturerPramet

Part #816055858

MFG #6755858

UPC #3603602912244

Pramet Turning Insert, SNMA Insert, 433 Insert, Squared, 0.236 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, 3/64 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T5305, ANSI Code: SNMA 433:T5305, ISO Code: SNMA 120412:T5305, 90 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, P, For Use On: Steel, Cast Iron and Hardened Steel

$9.68

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: SNMA 433:T5305

Corner Radius: 3/64 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Steel, Cast Iron and Hardened Steel

Hole Diameter: 0.203 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: SNMA

ISO Code: SNMA 120412:T5305

Length: 1/2 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T5305

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 0.236 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Squared

Thickness: 3/16 in

Width: 1/2 in

T5305 grade fine grained substrate with a low cobalt content
Thick layer of MT-CVD coating with a layer of Al2O3 on the surface

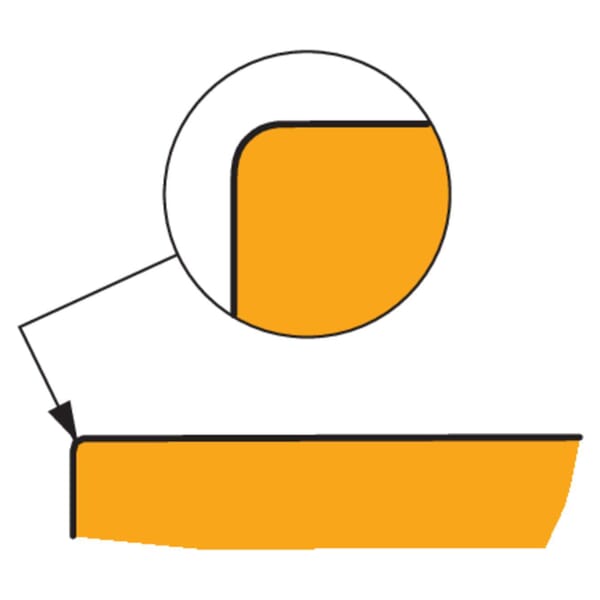

Special finish for coating
Top performance for machining gray cast iron
Material with the highest abrasion resistance of the 5300 series
High cutting speeds
Continuous and slightly interrupted cut
