Pramet 6755849 Turning Insert, ANSI Code: DCMT 32.52-UR T5315, DCMT Insert, Material Grade: H, K, M, P, 32.52 Insert, Diamond Shape, 11 Seat, Positive Rake, For Use On Cast Iron, Hardened Steel, Stainless Steel and Steel, Carbide

ManufacturerPramet

Part #816055849

MFG #6755849

UPC #3603602912152

Pramet Turning Insert, DCMT Insert, 32.52 Insert, Diamond, 0.098 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 5/32 in Thickness, 0.457 in Length, 11 Seat, Positive Rake, UR Chipbreaker, 1/32 in Corner Radius, 0.177 in Hole Dia, Manufacturers Grade: T5315, ANSI Code: DCMT 32.52-UR T5315, ISO Code: DCMT 11T308E-UR T5315, 55 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: H, K, M, P, For Use On: Cast Iron, Hardened Steel, Stainless Steel and Steel

$9.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DCMT 32.52-UR T5315

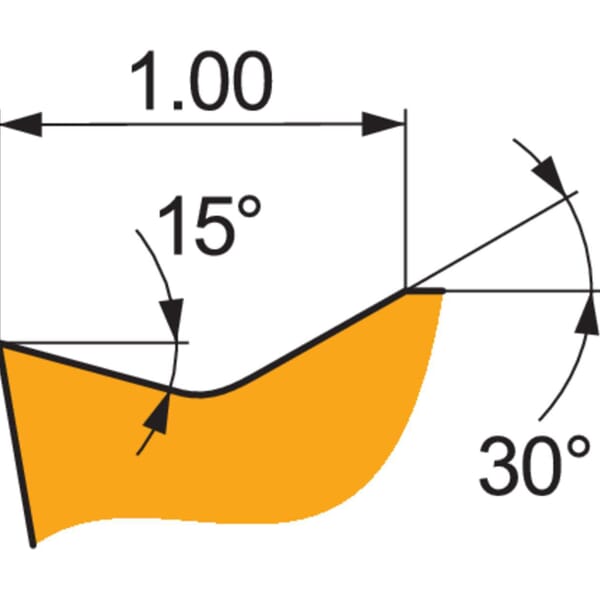

Chipbreaker: UR

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: CVD-TiCN+Al2O3 Coated

For Use On: Cast Iron, Hardened Steel, Stainless Steel and Steel

Hole Diameter: 0.177 in

Included Angle: 55 deg

Inscribed Circle: 3/8 in

Insert Size: 32.52

Insert Style: DCMT

ISO Code: DCMT 11T308E-UR T5315

Length: 0.457 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T5315

Material: Carbide

Material Grade: H, K, M, P

Maximum Depth of Cut: 0.098 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 11

Shape: Diamond

Thickness: 5/32 in

T5315 grade fine grained substrate with a modified cobalt content to increase strength
Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
Special finish for coating
Versatile material designed primarily for turning gray and ductile cast iron
Medium to high cutting speeds
Suitable for continuous and interrupted cut

Finishing and Roughing
