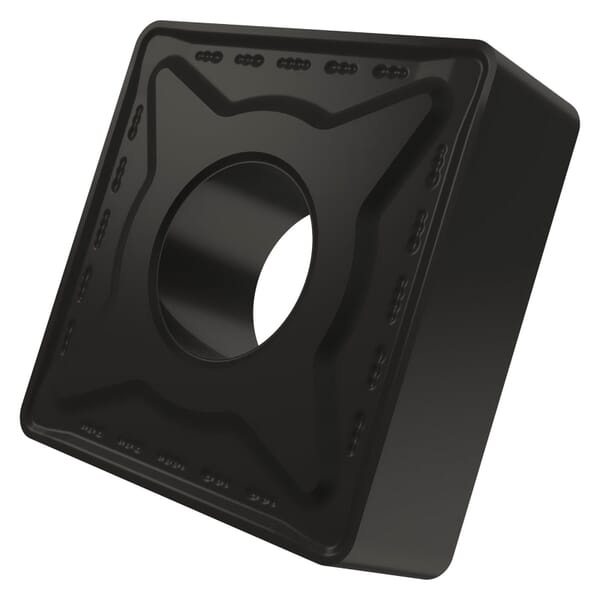

Pramet 6755772 Turning Insert Pramet, ANSI Code: SNMG 433-RM:T5315, SNMG Insert, Material Grade: H, K, M, P, 433 Insert, Squared Shape, 12 Seat, Negative Rake, For Use On Stainless Steel, Steel, Cast Iron and Hardened Steel, Carbide

ManufacturerPramet

Part #816055772

MFG #6755772

UPC #3603602911384

Pramet Turning Insert Pramet, SNMG Insert, 433 Insert, Squared, 0.276 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, RM Chipbreaker, 3/64 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T5315, ANSI Code: SNMG 433-RM:T5315, ISO Code: SNMG 120412E-RM:T5315, 90 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, M, P, For Use On: Stainless Steel, Steel, Cast Iron and Hardened Steel

$10.65

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: SNMG 433-RM:T5315

Chipbreaker: RM

Corner Radius: 3/64 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel, Cast Iron and Hardened Steel

Hole Diameter: 0.203 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: SNMG

ISO Code: SNMG 120412E-RM:T5315

Length: 1/2 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T5315

Material: Carbide

Material Grade: H, K, M, P

Maximum Depth of Cut: 0.276 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Squared

Thickness: 3/16 in

Width: 1/2 in

T5315 grade fine grained substrate with a modified cobalt content to increase strength
Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
Special finish for coating
Versatile material designed primarily for turning gray and ductile cast iron
Medium to high cutting speeds
Suitable for continuous and interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Finishing and Roughing

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: SNMG 433-RM:T5315

Chipbreaker: RM

Corner Radius: 3/64 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel, Cast Iron and Hardened Steel

Hole Diameter: 0.203 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: SNMG

ISO Code: SNMG 120412E-RM:T5315

Length: 1/2 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T5315

Material: Carbide

Material Grade: H, K, M, P

Maximum Depth of Cut: 0.276 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Squared

Thickness: 3/16 in

Width: 1/2 in

T5315 grade fine grained substrate with a modified cobalt content to increase strength
Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
Special finish for coating
Versatile material designed primarily for turning gray and ductile cast iron
Medium to high cutting speeds
Suitable for continuous and interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Finishing and Roughing

Specification Sheet

Catalog
