Pramet 6755728 Turning Insert, ANSI Code: WNMA 432 T5315, WNMA Insert, Material Grade: H, K, M, P, 432 Insert, Trigon Shape, 80 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron, Stainless Steel and Steel, Carbide, Manufacturers Grade: T5315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6755728 Turning Insert, ANSI Code: WNMA 432 T5315, WNMA Insert, Material Grade: H, K, M, P, 432 Insert, Trigon Shape, 80 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron, Stainless Steel and Steel, Carbide, Manufacturers Grade: T5315

ManufacturerPramet

Part #816055728

MFG #6755728

UPC #3603602910943

Pramet Turning Insert, WNMA Insert, 432 Insert, Trigon, 0.173 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 80 Seat, Negative Rake, 1/32 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T5315, ANSI Code: WNMA 432 T5315, ISO Code: WNMA 080408 T5315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, M, P, For Use On: Hardened Steel, Cast Iron, Stainless Steel and Steel

$10.65

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: WNMA 432 T5315

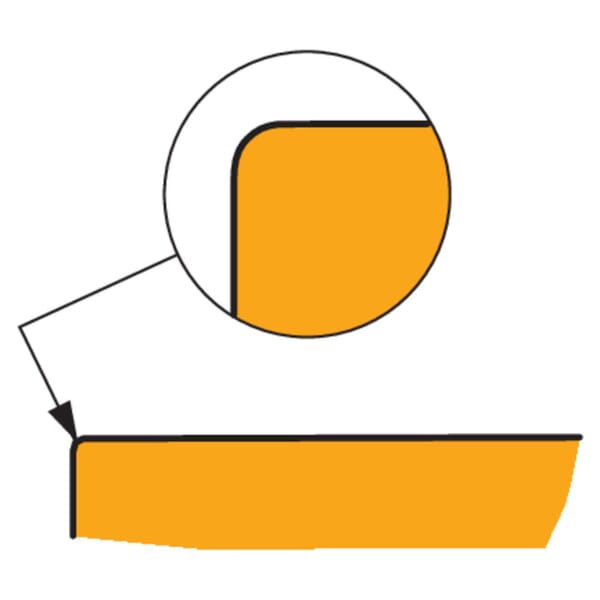

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel and Steel

Hole Diameter: 0.203 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: WNMA

ISO Code: WNMA 080408 T5315

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T5315

Material: Carbide

Material Grade: H, K, M, P

Maximum Depth of Cut: 0.173 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 80

Shape: Trigon

Thickness: 3/16 in

T5315 grade fine grained substrate with a modified cobalt content to increase strength
Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
Special finish for coating
Versatile material designed primarily for turning gray and ductile cast iron
Medium to high cutting speeds
Suitable for continuous and interrupted cut
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and without chipbreakers

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Finishing and Roughing

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: WNMA 432 T5315

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel and Steel

Hole Diameter: 0.203 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: WNMA

ISO Code: WNMA 080408 T5315

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T5315

Material: Carbide

Material Grade: H, K, M, P

Maximum Depth of Cut: 0.173 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 80

Shape: Trigon

Thickness: 3/16 in

T5315 grade fine grained substrate with a modified cobalt content to increase strength
Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
Special finish for coating
Versatile material designed primarily for turning gray and ductile cast iron
Medium to high cutting speeds
Suitable for continuous and interrupted cut
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and without chipbreakers

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Finishing and Roughing

Catalog
