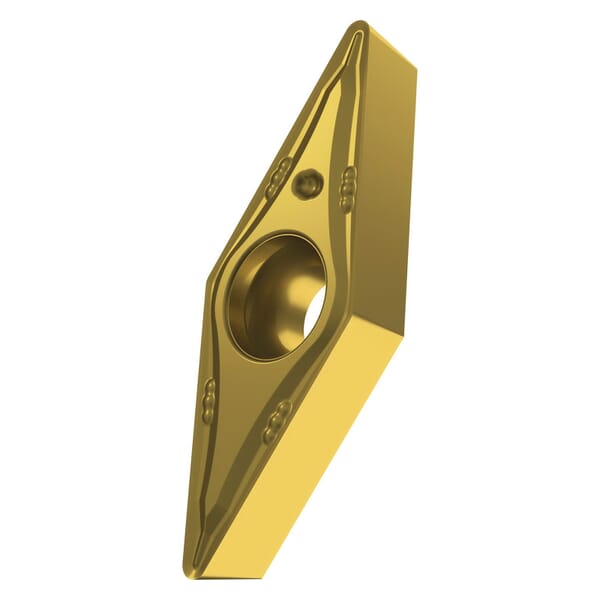

Pramet 6755664 Turning Insert Pramet, ANSI Code: VCMT 332-FM T8330, VCMT Insert, Material Grade: H, K, M, N, P, S, 332 Insert, Diamond Shape, 16 Seat, Positive Rake, Carbide, Manufacturers Grade: T8330

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6755664 Turning Insert Pramet, ANSI Code: VCMT 332-FM T8330, VCMT Insert, Material Grade: H, K, M, N, P, S, 332 Insert, Diamond Shape, 16 Seat, Positive Rake, Carbide, Manufacturers Grade: T8330

ManufacturerPramet

Part #816055664

MFG #6755664

UPC #3603602910301

Pramet Turning Insert Pramet, VCMT Insert, 332 Insert, Diamond, 2.5 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, FM Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: T8330, ANSI Code: VCMT 332-FM T8330, ISO Code: VCMT 160408E-FM T8330, 35 deg Included Angle, 7 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

$17.70

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: VCMT 332-FM T8330

Chipbreaker: FM

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 4.5 mm

Included Angle: 35 deg

Inscribed Circle: 9.525 mm

Insert Size: 332

Insert Style: VCMT

ISO Code: VCMT 160408E-FM T8330

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 2.5 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 16

Shape: Diamond

Thickness: 4.76 mm

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions
Extremely universal cutting geometry, generates a very low cutting force and has good stability
Suitable for slightly interrupted cut
Cutting geometry particularly suited to parting and grooving
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on one side only

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: VCMT 332-FM T8330

Chipbreaker: FM

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 4.5 mm

Included Angle: 35 deg

Inscribed Circle: 9.525 mm

Insert Size: 332

Insert Style: VCMT

ISO Code: VCMT 160408E-FM T8330

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 2.5 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 16

Shape: Diamond

Thickness: 4.76 mm

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions
Extremely universal cutting geometry, generates a very low cutting force and has good stability
Suitable for slightly interrupted cut
Cutting geometry particularly suited to parting and grooving
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on one side only

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog
