Pramet 6755070 Turning Insert, ANSI Code: WNMG 432-M T9310, WNMG Insert, Material Grade: H, K, P, 432 Insert, Trigon Shape, 8 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9310

ManufacturerPramet

Part #816055070

MFG #6755070

UPC #3603602904362

Pramet Turning Insert, WNMG Insert, 432 Insert, Trigon, 0.22 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 8 Seat, Negative Rake, M Chipbreaker, 1/32 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T9310, ANSI Code: WNMG 432-M T9310, ISO Code: WNMG 080408E-M T9310, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

$10.65

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: WNMG 432-M T9310

Chipbreaker: M

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 0.203 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: WNMG

ISO Code: WNMG 080408E-M T9310

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9310

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 0.22 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 8

Shape: Trigon

Thickness: 3/16 in

T9310 grade fine grained, functionally gradient substrate
Low cobalt content
Thick MT-CVD coating with a special Al2O3 layer
Exceptional thermal and chemical stability ensures excellent protection of the bearing material
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on both sides

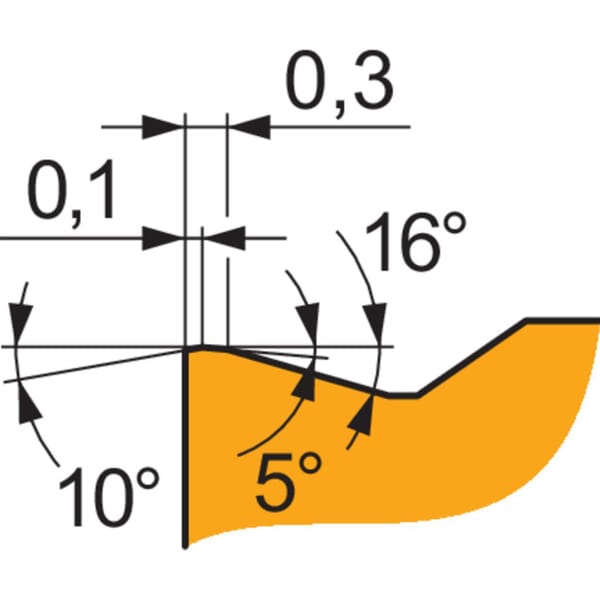

M chipbreaker - positive geometry
Low cutting forces, appropriate chip formation
For milling of cast iron and steel
