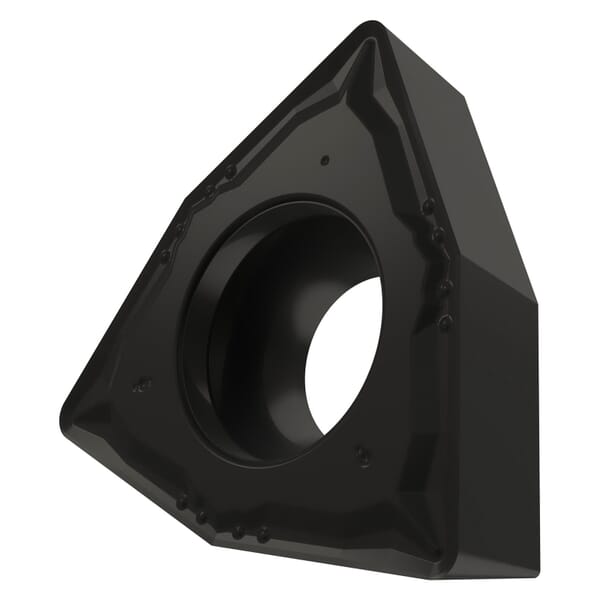

Pramet 6754838 Turning Insert, ANSI Code: WCMT 32.51-FM T7335, WCMT Insert, Material Grade: M, P, S, 32.51 Insert, Trigon Shape, 6 Seat, Positive Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T7335

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6754838 Turning Insert, ANSI Code: WCMT 32.51-FM T7335, WCMT Insert, Material Grade: M, P, S, 32.51 Insert, Trigon Shape, 6 Seat, Positive Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T7335

ManufacturerPramet

Part #816054838

MFG #6754838

UPC #3603602902047

Pramet Turning Insert, WCMT Insert, 32.51 Insert, Trigon, 0.118 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 5/32 in Thickness, 6 Seat, Positive Rake, FM Chipbreaker, 1/64 in Corner Radius, 0.177 in Hole Dia, Manufacturers Grade: T7335, ANSI Code: WCMT 32.51-FM T7335, ISO Code: WCMT 06T304E-FM T7335, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys

$14.57

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: WCMT 32.51-FM T7335

Chipbreaker: FM

Corner Radius: 1/64 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 0.177 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 32.51

Insert Style: WCMT

ISO Code: WCMT 06T304E-FM T7335

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T7335

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 0.118 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 6

Shape: Trigon

Thickness: 5/32 in

T7335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
Relatively thin coating applied with the MT-CVD method
Material shows very high strength
Special surface finish for coating
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on one side only

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, WCMT Insert, 32.51 Insert, Trigon, 0.118 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 5/32 in Thickness, 6 Seat, Positive Rake, FM Chipbreaker, 1/64 in Corner Radius, 0.177 in Hole Dia, Manufacturers Grade: T7335, ANSI Code: WCMT 32.51-FM T7335, ISO Code: WCMT 06T304E-FM T7335, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: WCMT 32.51-FM T7335

Chipbreaker: FM

Corner Radius: 1/64 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 0.177 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 32.51

Insert Style: WCMT

ISO Code: WCMT 06T304E-FM T7335

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T7335

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 0.118 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 6

Shape: Trigon

Thickness: 5/32 in

T7335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
Relatively thin coating applied with the MT-CVD method
Material shows very high strength
Special surface finish for coating
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on one side only

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, WCMT Insert, 32.51 Insert, Trigon, 0.118 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 5/32 in Thickness, 6 Seat, Positive Rake, FM Chipbreaker, 1/64 in Corner Radius, 0.177 in Hole Dia, Manufacturers Grade: T7335, ANSI Code: WCMT 32.51-FM T7335, ISO Code: WCMT 06T304E-FM T7335, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Catalog
