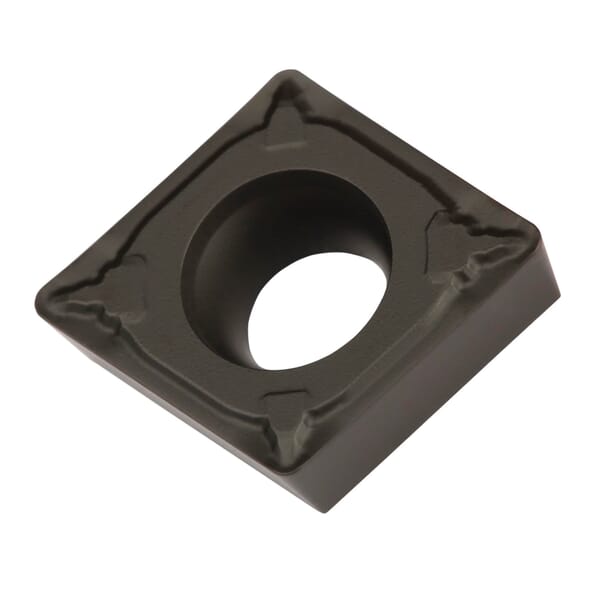

Pramet 6754733 Turning Insert, ANSI Code: CCMT 21.50.5-UR:T7335, CCMT Insert, Material Grade: M, P, S, 21.50.5 Insert, Diamond Shape, 6 Seat, Positive Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T7335

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6754733 Turning Insert, ANSI Code: CCMT 21.50.5-UR:T7335, CCMT Insert, Material Grade: M, P, S, 21.50.5 Insert, Diamond Shape, 6 Seat, Positive Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T7335

ManufacturerPramet

Part #816054733

MFG #6754733

UPC #3603602900999

Pramet Turning Insert, CCMT Insert, 21.50.5 Insert, Diamond, 3 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 6.4 mm Length, 6 Seat, Positive Rake, UR Chipbreaker, 0.2 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: T7335, ANSI Code: CCMT 21.50.5-UR:T7335, ISO Code: CCMT 060202E-UR:T7335, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys

$7.12

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CCMT 21.50.5-UR:T7335

Chipbreaker: UR

Corner Radius: 0.2 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 2.9 mm

Included Angle: 80 deg

Inscribed Circle: 6.35 mm

Insert Size: 21.50.5

Insert Style: CCMT

ISO Code: CCMT 060202E-UR:T7335

Length: 6.4 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T7335

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 6

Shape: Diamond

Thickness: 2.38 mm

T7335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
Relatively thin coating applied with the MT-CVD method
Material shows very high strength
Special surface finish for coating
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions

Fine Turning, Finishing and Drilling

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: CCMT 21.50.5-UR:T7335

Chipbreaker: UR

Corner Radius: 0.2 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 2.9 mm

Included Angle: 80 deg

Inscribed Circle: 6.35 mm

Insert Size: 21.50.5

Insert Style: CCMT

ISO Code: CCMT 060202E-UR:T7335

Length: 6.4 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T7335

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 6

Shape: Diamond

Thickness: 2.38 mm

T7335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
Relatively thin coating applied with the MT-CVD method
Material shows very high strength
Special surface finish for coating
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions

Fine Turning, Finishing and Drilling

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog
