Pramet 6754546 Positive Milling Insert, ANSI Code: ADMX -48SR-M M9325, ADMX Insert, 160632 Insert, Carbide, Manufacturers Grade: M9325, 85 deg Parallelogram Shape

ManufacturerPramet

Part #816054546

MFG #6754546

UPC #3603602899125

Pramet Milling Insert, Positive, ADMX Insert, 160632 Insert, 85 deg Parallelogram, 9.95 mm Inscribed Circle, 6.25 mm Thickness, 16 mm Length, M Chipbreaker, 3.2 mm Corner Radius, 15 deg Lead Angle, 4.5 mm Hole Dia, Manufacturers Grade: M9325, ANSI Code: ADMX -48SR-M M9325, ISO Code: ADMX 160632SR-M M9325, Right Hand, Carbide, CVD Coated, Steel, Stainless Steel and Titanium/Super Alloy Material Application

$18.55

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: ADMX -48SR-M M9325

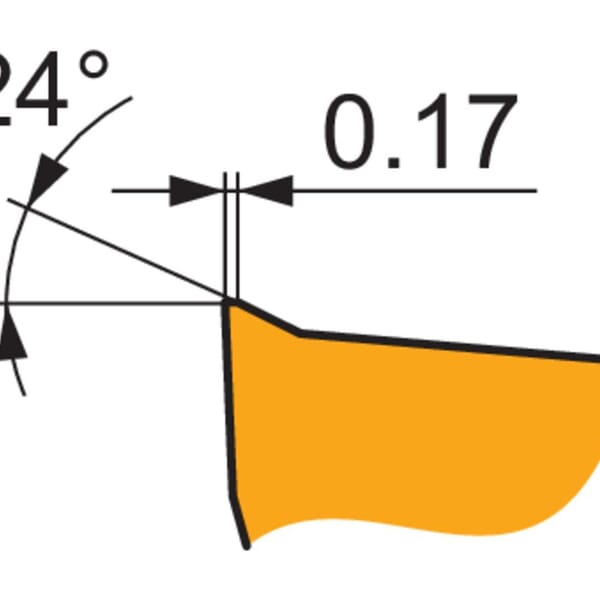

Chipbreaker: M

Corner Radius: 3.2 mm

Country of Origin: CZ

Finish: CVD Coated

Hand of Insert: Right

Hole Diameter: 4.5 mm

Inscribed Circle: 9.95 mm

Insert Size: 160632

Insert Style: ADMX

ISO Code: ADMX 160632SR-M M9325

Lead Angle: 15 deg

Length: 16 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: M9325

Material: Carbide

Material Application: Steel, Stainless Steel and Titanium/Super Alloy

Shape: 85 deg Parallelogram

Thickness: 6.25 mm

Type: Positive

Fine grained substrate with a high content of bonding cobalt phase
Thin MT-CVD coating with a unique Al2O3 layer
Suited to medium to high cutting speeds
High strength and operational reliability
Good wear resistance

General Machining Applications
