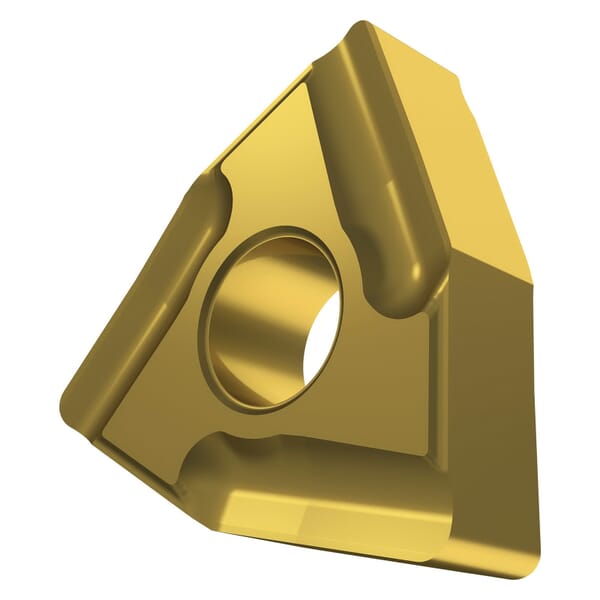

Pramet 6754376 Turning Insert Pramet, ANSI Code: WNMG 432L-SI T8330, WNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Trigon Shape, 8 Seat, Negative Rake, Carbide, Manufacturers Grade: T8330

ManufacturerPramet

Part #816054376

MFG #6754376

UPC #3603602897428

Pramet Turning Insert Pramet, WNMG Insert, 432 Insert, Trigon, 0.197 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 8 Seat, Negative Rake, SI Chipbreaker, 1/32 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T8330, ANSI Code: WNMG 432L-SI T8330, ISO Code: WNMG 080408EL-SI T8330, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

$11.12

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: WNMG 432L-SI T8330

Chipbreaker: SI

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 0.203 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: WNMG

ISO Code: WNMG 080408EL-SI T8330

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 0.197 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 8

Shape: Trigon

Thickness: 3/16 in

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions
Extremely universal cutting geometry, generates a very low cutting force and has good stability
Suitable for slightly interrupted cut
Cutting geometry particularly suited to parting and grooving
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on both sides

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
