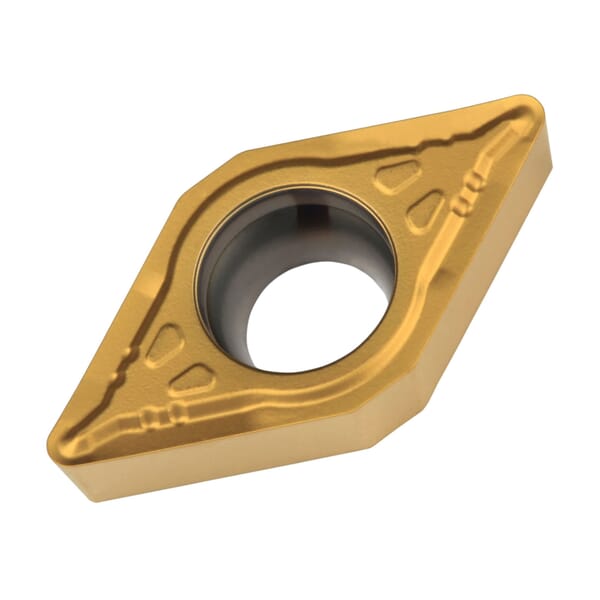

Pramet 6754238 Turning Insert Pramet, ANSI Code: DCMT 21.51-UR T8330, DCMT Insert, Material Grade: H, K, M, N, P, S, 21.51 Insert, Diamond Shape, 7 Seat, Positive Rake, Carbide, Manufacturers Grade: T8330

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6754238 Turning Insert Pramet, ANSI Code: DCMT 21.51-UR T8330, DCMT Insert, Material Grade: H, K, M, N, P, S, 21.51 Insert, Diamond Shape, 7 Seat, Positive Rake, Carbide, Manufacturers Grade: T8330

ManufacturerPramet

Part #816054238

MFG #6754238

UPC #3603602896049

Pramet Turning Insert Pramet, DCMT Insert, 21.51 Insert, Diamond, 0.079 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 3/32 in Thickness, 0.307 in Length, 7 Seat, Positive Rake, UR Chipbreaker, 1/64 in Corner Radius, 0.114 in Hole Dia, Manufacturers Grade: T8330, ANSI Code: DCMT 21.51-UR T8330, ISO Code: DCMT 070204E-UR T8330, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

$9.25

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DCMT 21.51-UR T8330

Chipbreaker: UR

Corner Radius: 1/64 in

Country of Origin: CZ

Finish: PVD Coated

For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 0.114 in

Included Angle: 55 deg

Inscribed Circle: 1/4 in

Insert Size: 21.51

Insert Style: DCMT

ISO Code: DCMT 070204E-UR T8330

Length: 0.307 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 0.079 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 7

Shape: Diamond

Thickness: 3/32 in

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
