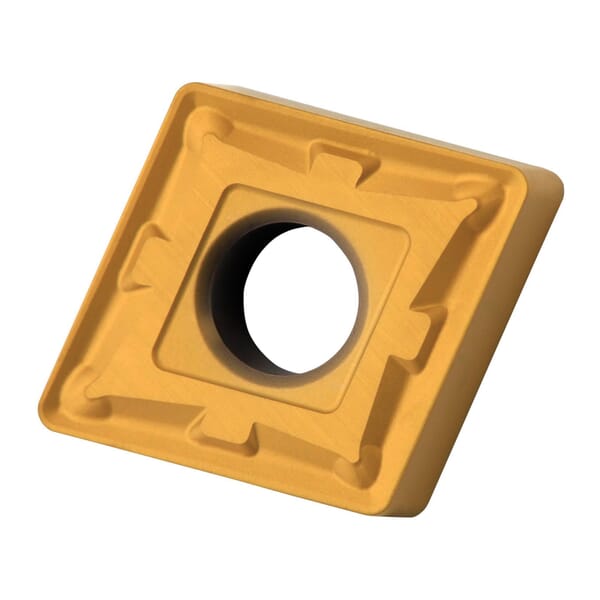

Pramet 6754188 Turning Insert, ANSI Code: CNMG 432-M:T8330, CNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6754188 Turning Insert, ANSI Code: CNMG 432-M:T8330, CNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

ManufacturerPramet

Part #816054188

MFG #6754188

UPC #3603602895547

Pramet Turning Insert, CNMG Insert, 432 Insert, Diamond, 6 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Negative Rake, M Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T8330, ANSI Code: CNMG 432-M:T8330, ISO Code: CNMG 120408E-M:T8330, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

$11.28

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 432-M:T8330

Chipbreaker: M

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 12.7 mm

Insert Size: 432

Insert Style: CNMG

ISO Code: CNMG 120408E-M:T8330

Length: 12.9 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 6 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 4.76 mm

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions

Finishing and Semi-Roughing

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 432-M:T8330

Chipbreaker: M

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 12.7 mm

Insert Size: 432

Insert Style: CNMG

ISO Code: CNMG 120408E-M:T8330

Length: 12.9 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 6 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 4.76 mm

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions

Finishing and Semi-Roughing

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
