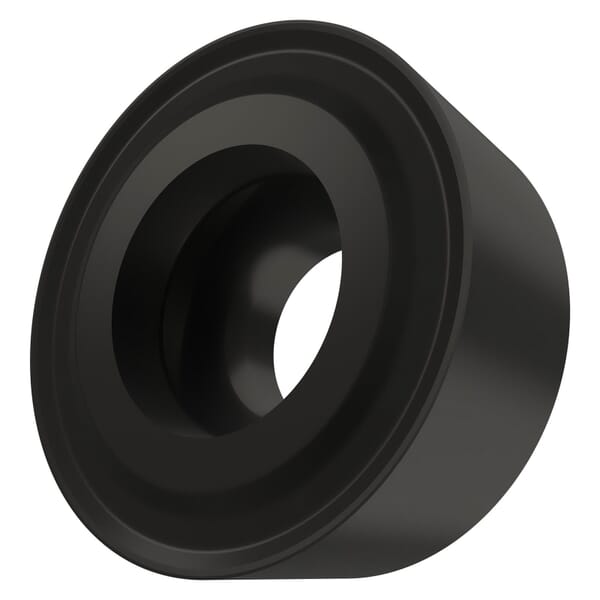

Pramet 6754034 Turning Insert, RCMT Insert, Material Grade: H, K, P, 0803MO Insert, Round Shape, 8 Seat, Positive Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6754034 Turning Insert, RCMT Insert, Material Grade: H, K, P, 0803MO Insert, Round Shape, 8 Seat, Positive Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816054034

MFG #6754034

UPC #3603602894007

Pramet Turning Insert, RCMT Insert, 0803MO Insert, Round, 3 mm Maximum Depth of Cut, 8 mm Inscribed Circle, 3.18 mm Thickness, 8 Seat, Positive Rake, FM Chipbreaker, 0.15 mm Corner Radius, 3.4 mm Hole Dia, Manufacturers Grade: T9315, ISO Code: RCMT 0803MOE-FM T9315, 7 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, P, Hardened Steel, Cast Iron and Steel For Use On

$8.65

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Chipbreaker: FM

Corner Radius: 0.15 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 3.4 mm

Inscribed Circle: 8 mm

Insert Size: 0803MO

Insert Style: RCMT

ISO Code: RCMT 0803MOE-FM T9315

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 8

Shape: Round

Thickness: 3.18 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Finishing to Semi-Roughing Applications

Catalog

Manufacturer Name: Dormer Pramet

Chipbreaker: FM

Corner Radius: 0.15 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 3.4 mm

Inscribed Circle: 8 mm

Insert Size: 0803MO

Insert Style: RCMT

ISO Code: RCMT 0803MOE-FM T9315

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 8

Shape: Round

Thickness: 3.18 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Finishing to Semi-Roughing Applications

Catalog
