Pramet 6753928 Turning Insert, ANSI Code: CNMM 643-OR:T9325, CNMM Insert, Material Grade: K, M, P, S, 643 Insert, Diamond Shape, 19 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide

ManufacturerPramet

Part #816053928

MFG #6753928

UPC #3603602892942

Pramet Turning Insert, CNMM Insert, 643 Insert, Diamond, 10 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19.3 mm Length, 19 Seat, Negative Rake, OR Chipbreaker, 1.2 mm Corner Radius, 7.94 mm Hole Dia, Manufacturers Grade: T9325, ANSI Code: CNMM 643-OR:T9325, ISO Code: CNMM 190612E-OR:T9325, 80 deg Included Angle, 0 deg Relief Angle, Carbide, MT-CVD Coated, Material Grade: K, M, P, S, For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

$20.87

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMM 643-OR:T9325

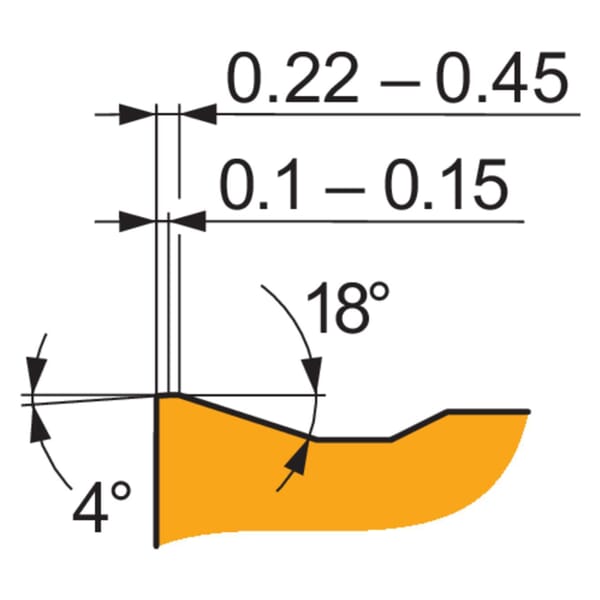

Chipbreaker: OR

Corner Radius: 1.2 mm

Country of Origin: CZ

Finish: MT-CVD Coated

For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 7.94 mm

Included Angle: 80 deg

Inscribed Circle: 19.05 mm

Insert Size: 643

Insert Style: CNMM

ISO Code: CNMM 190612E-OR:T9325

Length: 19.3 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9325

Material: Carbide

Material Grade: K, M, P, S

Maximum Depth of Cut: 10 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Shape: Diamond

Thickness: 6.35 mm

T9325 grade functionally gradient substrate
Relatively low content of cobalt binder phase
Thick MT-CVD coating
Highly versatile material with very good operational reliability
Special surface finish for coating
Medium and higher cutting speed
Continuous and interrupted cut
Unfavorable cutting conditions, continuous and/or interrupted cuts

Heavy Roughing and Finishing
