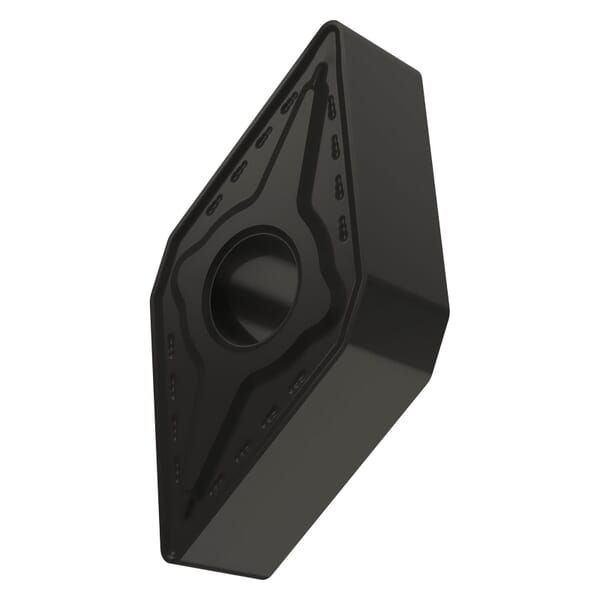

Pramet 6753870 Turning Insert, ANSI Code: DNMG 332-RM T9315, DNMG Insert, Material Grade: H, K, P, 332 Insert, Diamond Shape, 11 Seat, Negative Rake, For Use On Cast Iron, Hardened Steel and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816053870

MFG #6753870

UPC #3603602892362

Pramet Turning Insert, DNMG Insert, 332 Insert, Diamond, 0.13 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 3/16 in Thickness, 0.457 in Length, 11 Seat, Negative Rake, RM Chipbreaker, 1/32 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: T9315, ANSI Code: DNMG 332-RM T9315, ISO Code: DNMG 110408E-RM T9315, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel

$13.58

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DNMG 332-RM T9315

Chipbreaker: RM

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: CVD-Al2O3 Coated

For Use On: Cast Iron, Hardened Steel and Steel

Hole Diameter: 0.15 in

Included Angle: 55 deg

Inscribed Circle: 3/8 in

Insert Size: 332

Insert Style: DNMG

ISO Code: DNMG 110408E-RM T9315

Length: 0.457 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 0.13 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 11

Shape: Diamond

Thickness: 3/16 in

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
Higher cutting speeds
Continuous to slightly interrupted cut

Semi-Roughing and Roughing
