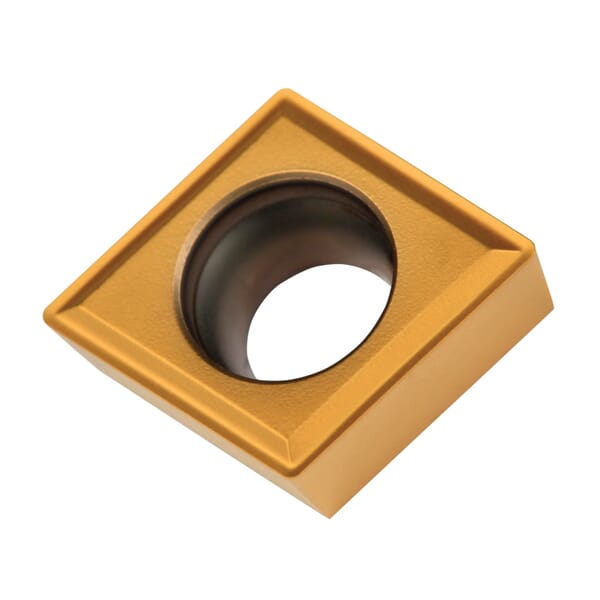

Pramet 6753663 Turning Insert, ANSI Code: CCMT 21.51-FF:T8315, CCMT Insert, Material Grade: H, K, M, N, P, S, 21.51 Insert, Diamond Shape, 6 Seat, Positive Rake, Carbide, Manufacturers Grade: T8315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6753663 Turning Insert, ANSI Code: CCMT 21.51-FF:T8315, CCMT Insert, Material Grade: H, K, M, N, P, S, 21.51 Insert, Diamond Shape, 6 Seat, Positive Rake, Carbide, Manufacturers Grade: T8315

ManufacturerPramet

Part #816053663

MFG #6753663

UPC #3603602890290

Pramet Turning Insert, CCMT Insert, 21.51 Insert, Diamond, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 6.4 mm Length, 6 Seat, Positive Rake, FF Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: T8315, ANSI Code: CCMT 21.51-FF:T8315, ISO Code: CCMT 060204E-FF:T8315, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

$8.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CCMT 21.51-FF:T8315

Chipbreaker: FF

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 2.9 mm

Included Angle: 80 deg

Inscribed Circle: 6.35 mm

Insert Size: 21.51

Insert Style: CCMT

ISO Code: CCMT 060204E-FF:T8315

Length: 6.4 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8315

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 2 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 6

Shape: Diamond

Thickness: 2.38 mm

T8315 grade highly abrasion resistant material of the T8300 series with guaranteed strength
Sub-micron substrate with a relatively low cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Higher cutting speeds
Medium chip cross sections
Stable machining conditions

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Fine Turning and Finishing

Catalog
