Pramet 6753626 Turning Insert Pramet, ANSI Code: TNMG 332-FF T8315, TNMG Insert, Material Grade: H, K, M, N, P, S, 332 Insert, Triangular Shape, 16 Seat, Negative Rake, Carbide, Manufacturers Grade: T8315

ManufacturerPramet

Part #816053626

MFG #6753626

UPC #3603602889928

Pramet Turning Insert Pramet, TNMG Insert, 332 Insert, Triangular, 1.5 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3/16 in Thickness, 16.5 mm Length, 16 Seat, Negative Rake, FF Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: T8315, ANSI Code: TNMG 332-FF T8315, ISO Code: TNMG 160408E-FF T8315, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

$8.45

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: TNMG 332-FF T8315

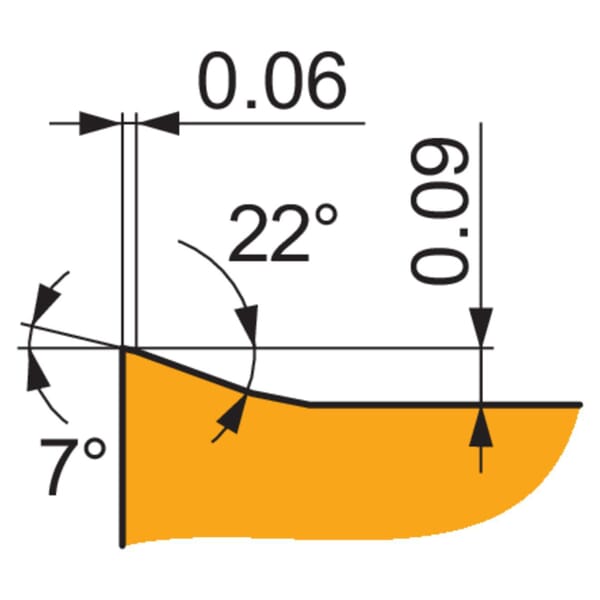

Chipbreaker: FF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 3.81 mm

Included Angle: 60 deg

Inscribed Circle: 9.525 mm

Insert Size: 332

Insert Style: TNMG

ISO Code: TNMG 160408E-FF T8315

Length: 16.5 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8315

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 1.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 16

Shape: Triangular

Thickness: 3/16 in

T8315 grade highly abrasion resistant material of the T8300 series with guaranteed strength
Sub-micron substrate with a relatively low cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
High cutting speeds
Medium chip cross sections
Stable machining conditions
Rounded edge
