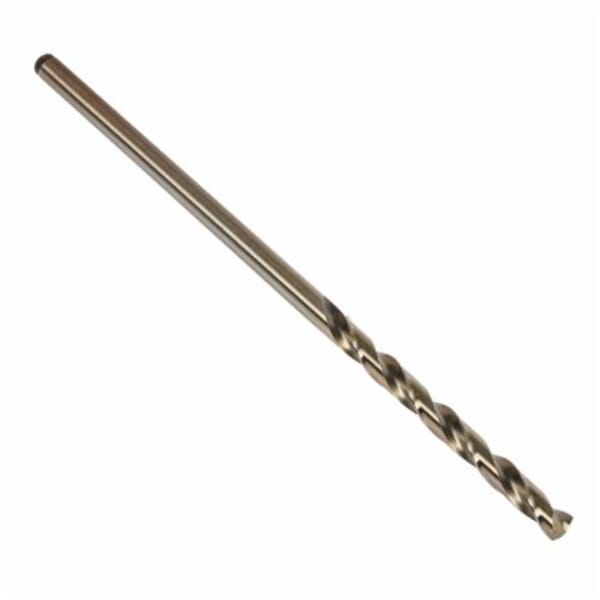

Precision Twist Drill 5995842 CO500-6 Type J Extra Length Heavy Duty Aircraft Extension Drill, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 135 deg Point, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Precision Twist Drill 5995842 CO500-6 Type J Extra Length Heavy Duty Aircraft Extension Drill, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 135 deg Point, HSS-E

ManufacturerPrecision Twist Drill

Part #816053606

MFG #5995842

UPC #086071536068

Precision Twist Drill Aircraft Extension Drill, Type J Extra Length Heavy Duty, Series: CO500-6, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 6 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1-1/4 in Flute Length, 0.0938 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Nickel, Alloyed, Alloy Steel/Hardened Steel and Tempered Steel

$5.72

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Nickel, Alloyed, Alloy Steel/Hardened Steel and Tempered Steel

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Size - Decimal Inch: 0.0938 in

Drill Size - Fraction: 3/32 in

Finish: Bronze

Flute Length: 1-1/4 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 6 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: CO500-6

Shank Size: 0.0938 in

Shank Type: Straight

Type: Type J Extra Length Heavy Duty

Low thrust design self-centering 135 deg split point for easier penetration
Cobalt base material with bronze oxide for wear resistance and lubricity
Cobalt is harder than high speed steel and provides better wear-resistance
Oxide gold finish provides a polished finish and prevents chip building, galling and welding on a work piece
No coolant channel

ANSI Specified|NAS 907|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Catalog

Manufacturer Name: Dormer Pramet

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Size - Decimal Inch: 0.0938 in

Drill Size - Fraction: 3/32 in

Finish: Bronze

Flute Length: 1-1/4 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 6 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: CO500-6

Shank Size: 0.0938 in

Shank Type: Straight

Type: Type J Extra Length Heavy Duty

Low thrust design self-centering 135 deg split point for easier penetration
Cobalt base material with bronze oxide for wear resistance and lubricity
Cobalt is harder than high speed steel and provides better wear-resistance
Oxide gold finish provides a polished finish and prevents chip building, galling and welding on a work piece
No coolant channel

ANSI Specified|NAS 907|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Catalog
