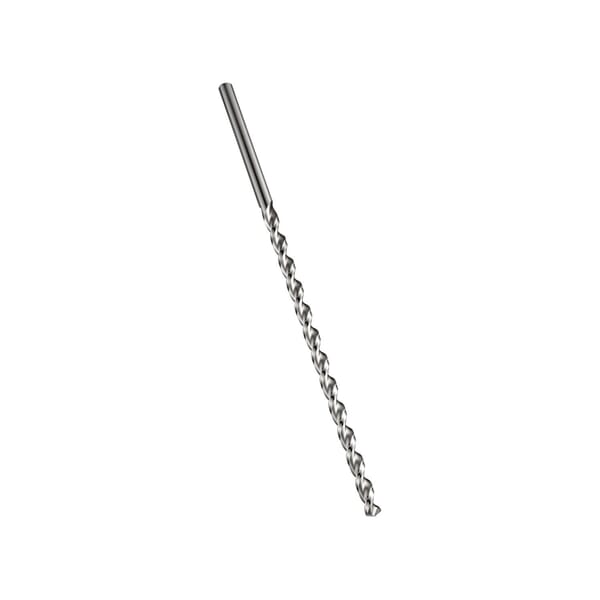

Dormer 5973251 A977 Heavy Duty Premium Quick-Helix Dormer Extra Length Drill, 1.59 mm Drill - Metric, 0.0625 in Drill - Decimal Inch, 150 mm OAL, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5973251 A977 Heavy Duty Premium Quick-Helix Dormer Extra Length Drill, 1.59 mm Drill - Metric, 0.0625 in Drill - Decimal Inch, 150 mm OAL, HSS-E

ManufacturerDormer

Part #816047393

MFG #0347393

UPC #7320760347393

Dormer Dormer Extra Length Drill, Heavy Duty Premium Quick-Helix, 1.59 mm Drill Size - Metric, 0.0625 in Drill Size - Decimal Inch, 150 mm Overall Length, 20XD Cutting Depth, 2 Flutes, Parabolic/Spiral Flute, 100 mm Flute Length, 1.59 mm Shank, Straight Shank, 130 deg Point, PFX Point, Right Hand Cutting, HSS-E Cutting Edge, HSS-E, Bright, Applicable Materials: Plain Carbon Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium and Copper, DIN 1869/2 Specifications Met, No Through Coolant (Yes/No)

$64.35

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Plain Carbon Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium and Copper

Country of Origin: BR

Cutting Depth: 20XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Size - Decimal Inch: 0.0625 in

Drill Size - Metric: 1.59 mm

Finish: Bright

Flute Length: 100 mm

Flute Type: Parabolic/Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 150 mm

Point Angle: 130 deg

Point Type: PFX

Series: A977

Shank Size: 1.59 mm

Shank Type: Straight

Specifications Met: DIN 1869/2

Through Coolant (Yes/No): No

Type: Heavy Duty Premium Quick-Helix

Heavy duty parabolic flute design allows greater drilling depths in one pass
Notched point improves chip formation
Premium cobalt base material increases wear resistance
Bright finish improves chip flow in soft or non-ferrous materials

DIN 1869/2|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

For advance chip removal

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Applicable Materials: Plain Carbon Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium and Copper

Country of Origin: BR

Cutting Depth: 20XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Size - Decimal Inch: 0.0625 in

Drill Size - Metric: 1.59 mm

Finish: Bright

Flute Length: 100 mm

Flute Type: Parabolic/Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 150 mm

Point Angle: 130 deg

Point Type: PFX

Series: A977

Shank Size: 1.59 mm

Shank Type: Straight

Specifications Met: DIN 1869/2

Through Coolant (Yes/No): No

Type: Heavy Duty Premium Quick-Helix

Heavy duty parabolic flute design allows greater drilling depths in one pass
Notched point improves chip formation
Premium cobalt base material increases wear resistance
Bright finish improves chip flow in soft or non-ferrous materials

DIN 1869/2|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

For advance chip removal

Specification Sheet

Catalog
