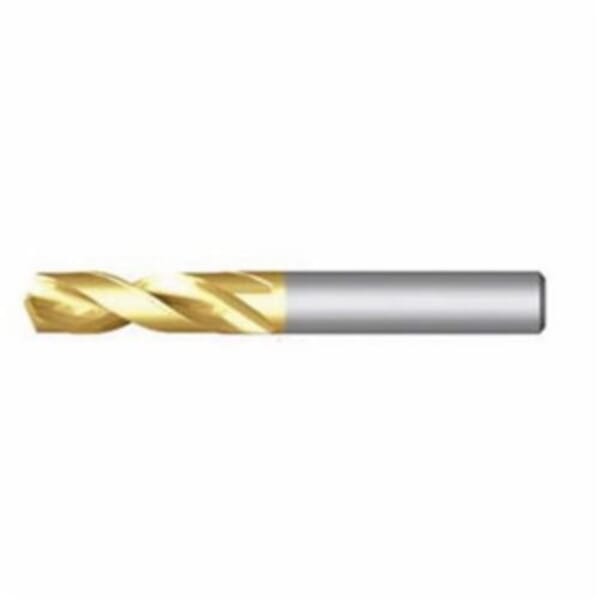

Dormer 5981117 R520 Heavy Duty Multi-Application Screw Machine Drill, 7.9 mm Drill - Metric, 0.311 in Drill - Decimal Inch, Carbide, TiN Coated

ManufacturerDormer

Part #816046464

MFG #0346464

UPC #7320760346464

Dormer Screw Machine Drill, Heavy Duty Multi-Application, Series: R520, Metric/Imperial, 7.9 mm Drill - Metric, 0.311 in Drill - Decimal Inch, 79 mm Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 37 mm Flute Length, 7.9 mm Shank, Parallel Shank, 130 deg Point, CDX/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiN Coated, Gold, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy steel/Hardened and Tempered Steel, Alloy steel Hardened, Free Machining Stainless Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Nickel Unalloyed, Aluminum Magnesium Unalloyed, Aluminum Alloyed, Thermoplastics and Thermosetting Plastics

$101.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Color: Gold

Country of Origin: FR

Cutting Depth: 2.5XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.311 in

Drill Size - Metric: 7.9 mm

Finish: TiN Coated

Flute Length: 37 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 79 mm

Point Angle: 130 deg

Point Type: CDX/Self-Centering/Split

Series: R520

Shank Size: 7.9 mm

Shank Type: Parallel

Type: Heavy Duty Multi-Application

Self-centering split point for easier penetration
TiN coating increases wear resistance and improves tool life

DIN 6539|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

For high-speed applications

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Color: Gold

Country of Origin: FR

Cutting Depth: 2.5XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.311 in

Drill Size - Metric: 7.9 mm

Finish: TiN Coated

Flute Length: 37 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 79 mm

Point Angle: 130 deg

Point Type: CDX/Self-Centering/Split

Series: R520

Shank Size: 7.9 mm

Shank Type: Parallel

Type: Heavy Duty Multi-Application

Self-centering split point for easier penetration
TiN coating increases wear resistance and improves tool life

DIN 6539|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

For high-speed applications

Specification Sheet

Catalog
