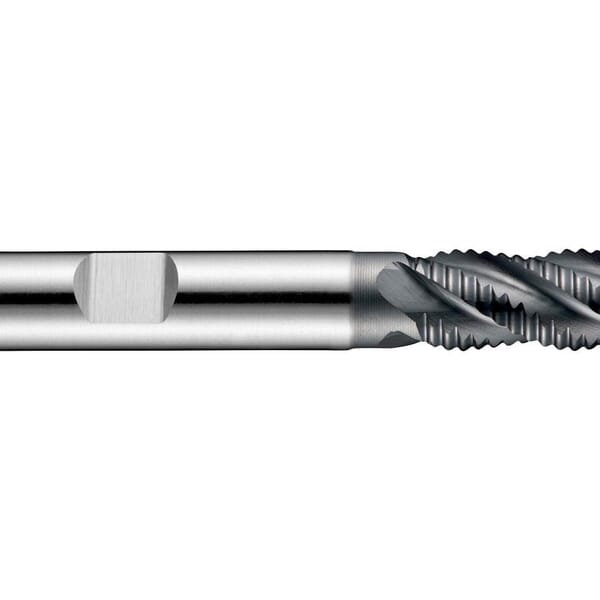

Dormer 5985708 C908 Type NRA Center Cutting Single End Square End End Mill, 9 mm Dia Cutter, 19 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 69 mm OAL, AlCrN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5985708 C908 Type NRA Center Cutting Single End Square End End Mill, 9 mm Dia Cutter, 19 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 69 mm OAL, AlCrN Coated

ManufacturerDormer

Part #816046198

MFG #0346198

UPC #7320760346198

Dormer End Mill, Type NRA Center Cutting Single End Square End, Series: C908, 9 mm Diameter Cutter, 69 mm Overall Length, 19 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Weldon Flat Shank, HSS-E, AlCrN Coated

$86.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Country of Origin: PL

Cutter Diameter: 9 mm

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Helix Angle: 35 deg

Length of Cut: 19 mm

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 4

Overall Length: 69 mm

Series: C908

Shank Diameter: 10 mm

Shank Type: Weldon Flat

Type: Type NRA Center Cutting Single End Square End

Powdered metal (PM) is tougher and more cost effective than solid carbide
It is commonly used on highly abrasive materials including high silicon aluminums
Aluminum chromium nitride (AlCrN) has a higher heat resistance than AlTiN
It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel
12 deg rake angle
K10 diameter tolerance

For slotting, ramping, roughing and diving operations

DIN 1835B|DIN 844K|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Manufacturer Name: Dormer Pramet

Country of Origin: PL

Cutter Diameter: 9 mm

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Helix Angle: 35 deg

Length of Cut: 19 mm

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 4

Overall Length: 69 mm

Series: C908

Shank Diameter: 10 mm

Shank Type: Weldon Flat

Type: Type NRA Center Cutting Single End Square End

Powdered metal (PM) is tougher and more cost effective than solid carbide
It is commonly used on highly abrasive materials including high silicon aluminums
Aluminum chromium nitride (AlCrN) has a higher heat resistance than AlTiN
It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel
12 deg rake angle
K10 diameter tolerance

For slotting, ramping, roughing and diving operations

DIN 1835B|DIN 844K|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
