Precision Twist Drill 6001103 239TBT Jobber Length Drill Bit, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 135 deg Point, HSS, Steam Tempered

ManufacturerPrecision Twist Drill

Part #816041917

MFG #6001103

UPC #086071419675

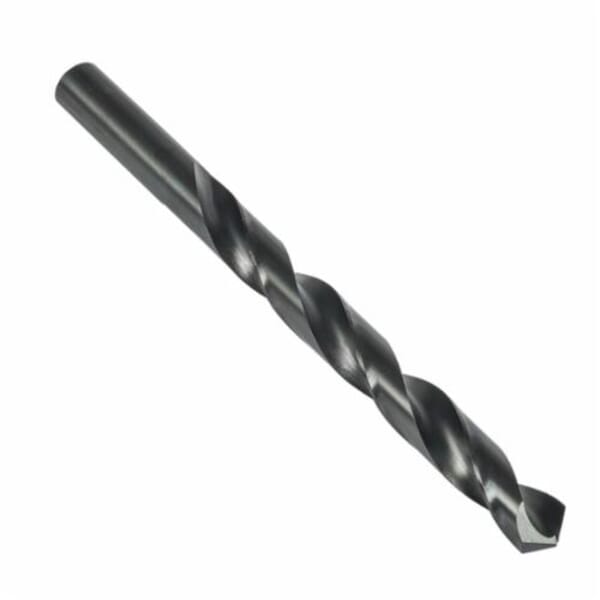

Precision Twist Drill Jobber Length Drill Bit, Series: 239TBT, Imperial, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 4-1/4 in Overall Length, 4XD Cutting Depth, Spiral Flute, 2-15/16 in Flute Length, 9/32 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray

$4.70

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Color: Dark Gray

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.2812 in

Drill Size - Fraction: 9/32 in

Finish: Steam Tempered

Flute Length: 2-15/16 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Overall Length: 4-1/4 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: 239TBT

Shank Size: 9/32 in

Shank Type: Straight

Through Coolant (Yes/No): No

Low thrust self-centering 135 deg split point design for easier penetration
Increasing web for strength and rigidity
Designed for hand drilling through stacked materials found in bus and truck trailer manufacturing
Steam oxide surface treatment for increased wear resistance

ANSI Specified|NAS 907 Type B|CSA Approved

For general drilling applications

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Color: Dark Gray

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.2812 in

Drill Size - Fraction: 9/32 in

Finish: Steam Tempered

Flute Length: 2-15/16 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Overall Length: 4-1/4 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: 239TBT

Shank Size: 9/32 in

Shank Type: Straight

Through Coolant (Yes/No): No

Low thrust self-centering 135 deg split point design for easier penetration
Increasing web for strength and rigidity
Designed for hand drilling through stacked materials found in bus and truck trailer manufacturing
Steam oxide surface treatment for increased wear resistance

ANSI Specified|NAS 907 Type B|CSA Approved

For general drilling applications

Specification Sheet

Catalog
