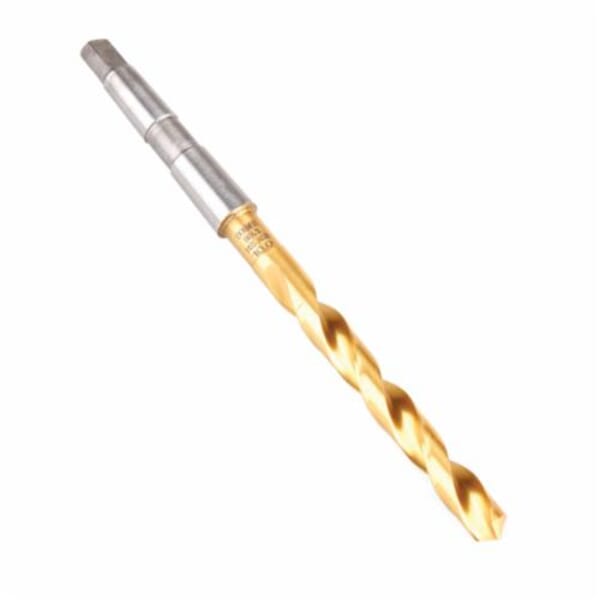

Dormer 5970238 A530 General Purpose Jobber Length Taper Shank Drill Bit, 28.5 mm Drill - Metric, 1.122 in Drill - Decimal Inch, #3 Morse Taper Shank Taper, HSS

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5970238 A530 General Purpose Jobber Length Taper Shank Drill Bit, 28.5 mm Drill - Metric, 1.122 in Drill - Decimal Inch, #3 Morse Taper Shank Taper, HSS

ManufacturerDormer

Part #816041215

MFG #0041215

UPC #7320760041215

Dormer Taper Shank Drill Bit, General Purpose Jobber Length, Series: A530, Metric/Imperial, 28.5 mm Drill - Metric, 1.122 in Drill - Decimal Inch, 296 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 175 mm Flute Length, #3 Morse Taper Shank Taper Designation, 118 deg Point, Thinned Web Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

$261.22

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 1.122 in

Drill Size - Metric: 28.5 mm

Finish: TiN Coated

Flute Length: 175 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 296 mm

Point Angle: 118 deg

Point Type: Thinned Web

Series: A530

Shank Taper Designation: #3 Morse Taper

Through Coolant (Yes/No): No

Type: General Purpose Jobber Length

TiN coating increases wear resistance and improves tool life
HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
A medium alloyed high speed steel that has good machinability and good performance
Thinned point design above 14 mm dia to reduce thrust and improve chip formation

DIN 345

For general drilling applications

Catalog

Manufacturer Name: Dormer Pramet

Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 1.122 in

Drill Size - Metric: 28.5 mm

Finish: TiN Coated

Flute Length: 175 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 296 mm

Point Angle: 118 deg

Point Type: Thinned Web

Series: A530

Shank Taper Designation: #3 Morse Taper

Through Coolant (Yes/No): No

Type: General Purpose Jobber Length

TiN coating increases wear resistance and improves tool life
HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
A medium alloyed high speed steel that has good machinability and good performance
Thinned point design above 14 mm dia to reduce thrust and improve chip formation

DIN 345

For general drilling applications

Catalog
