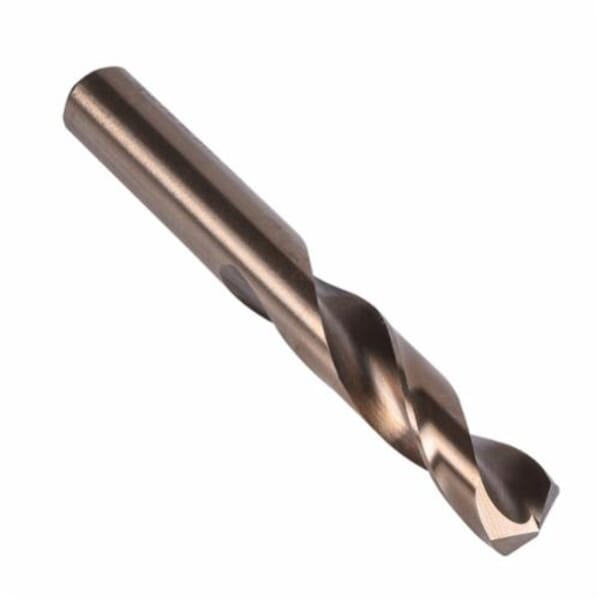

Precision Twist Drill 5995991 M40CO Heavy Duty Short Length Drill Bit, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, HSS-E, Bronze

ManufacturerPrecision Twist Drill

Part #816040305

MFG #5995991

UPC #086071403056

Precision Twist Drill Short Length Drill Bit, Heavy Duty, Series: M40CO, Imperial, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, 1-11/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 11/16 in Flute Length, 0.078 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Alloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium

$2.32

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Alloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium

Country of Origin: BR

Cutting Depth: 2.5XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.0781 in

Drill Size - Fraction: 5/64 in

Finish: Bronze

Flute Length: 11/16 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 1-11/16 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: M40CO

Shank Size: 0.078 in

Shank Type: Straight

Type: Heavy Duty

Low thrust design self-centering split point for easier penetration
Cobalt base material with bronze oxide for wear resistance and lubricity

For machining operations in screw machines

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
