Pramet 7036350 Turning Insert, ANSI Code: CNMM 646-HR2:T9226, CNMM Insert, Material Grade: K, M, P, S, 646 Insert, Diamond Shape, 19 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 7036350 Turning Insert, ANSI Code: CNMM 646-HR2:T9226, CNMM Insert, Material Grade: K, M, P, S, 646 Insert, Diamond Shape, 19 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide

ManufacturerPramet

Part #816036350

MFG #7036350

UPC #3603603110052

Pramet Turning Insert, CNMM Insert, 646 Insert, Diamond, 13 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19.3 mm Length, 19 Seat, Negative Rake, HR2 Chipbreaker, 2.4 mm Corner Radius, 7.94 mm Hole Dia, Manufacturers Grade: T9226, ANSI Code: CNMM 646-HR2:T9226, ISO Code: CNMM 190624E-HR2:T9226, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: K, M, P, S, For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

$20.45

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMM 646-HR2:T9226

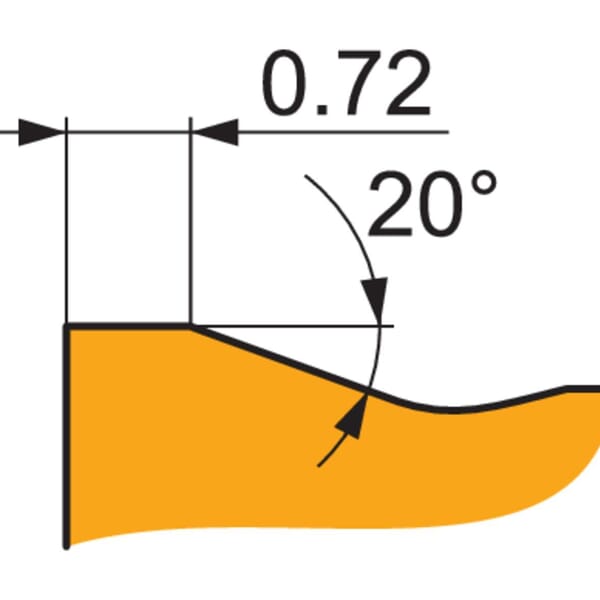

Chipbreaker: HR2

Corner Radius: 2.4 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 7.94 mm

Included Angle: 80 deg

Inscribed Circle: 19.05 mm

Insert Size: 646

Insert Style: CNMM

ISO Code: CNMM 190624E-HR2:T9226

Length: 19.3 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9226

Material: Carbide

Material Grade: K, M, P, S

Maximum Depth of Cut: 13 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Shape: Diamond

Thickness: 6.35 mm

T9226 grade greater cutting edge strength with the new functional gradient substrate containing a higher cobalt bonding phase and finer grain
Reduced adhesion of the workpiece material thanks to special treatment added to the coatings surface
Exceptional performance in heavy turning operations
Higher operational reliability
Ideally suited to for adverse machining conditions
Resistance to formation of heat related cracks

Roughing to Heavy Roughing Applications

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
