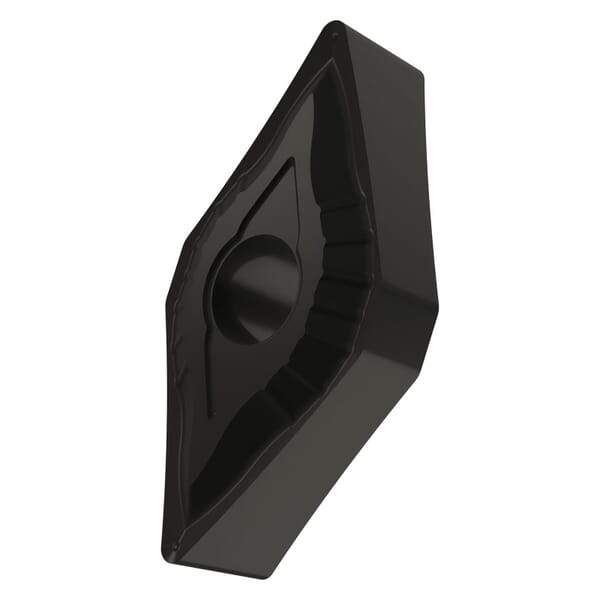

Pramet 7035057 Turning Insert, ANSI Code: DNMG 432-SF T9325, DNMG Insert, Material Grade: K, M, P, S, 432 Insert, Diamond Shape, 15 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 7035057 Turning Insert, ANSI Code: DNMG 432-SF T9325, DNMG Insert, Material Grade: K, M, P, S, 432 Insert, Diamond Shape, 15 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide

ManufacturerPramet

Part #816035057

MFG #7035057

UPC #3603603109285

Pramet Turning Insert, DNMG Insert, 432 Insert, Diamond, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15.5 mm Length, 15 Seat, Negative Rake, SF Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9325, ANSI Code: DNMG 432-SF T9325, ISO Code: DNMG 150408E-SF T9325, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: K, M, P, S, For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

$16.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DNMG 432-SF T9325

Chipbreaker: SF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 55 deg

Inscribed Circle: 12.7 mm

Insert Size: 432

Insert Style: DNMG

ISO Code: DNMG 150408E-SF T9325

Length: 15.5 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9325

Material: Carbide

Material Grade: K, M, P, S

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 15

Shape: Diamond

Thickness: 4.76 mm

T9325 grade functionally gradient substrate
Relatively low content of cobalt binder phase
Highly versatile material with very good operational reliability
Special surface finish for coating
Medium and higher cutting speed
Continuous and interrupted cut
Unfavorable cutting conditions, continuous and/or interrupted cuts
Cutting geometry suitable for grooving and axial turning
