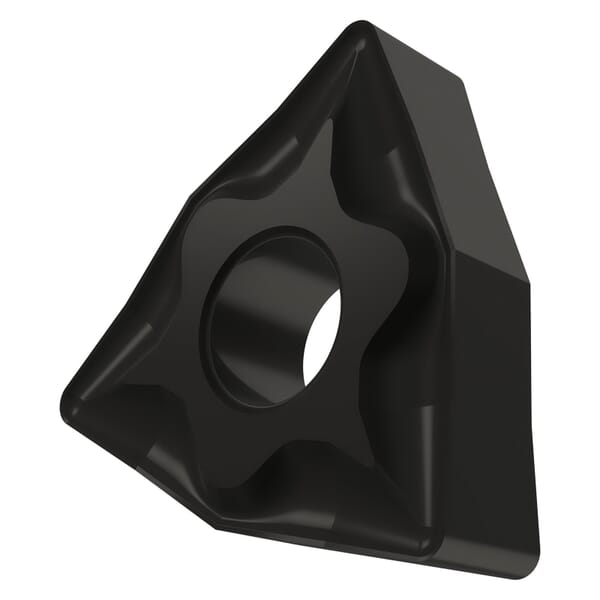

Pramet 6834748 Turning Insert, ANSI Code: WNMG 433-NF T9315, WNMG Insert, Material Grade: H, K, P, 433 Insert, Trigon Shape, 8 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816034748

MFG #6834748

UPC #3603603013100

Pramet Turning Insert, WNMG Insert, 433 Insert, Trigon, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 4.76 mm Thickness, 8 Seat, Negative Rake, NF Chipbreaker, 1.2 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: WNMG 433-NF T9315, ISO Code: WNMG 080412E-NF T9315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

$10.82

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: WNMG 433-NF T9315

Chipbreaker: NF

Corner Radius: 1.2 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: WNMG

ISO Code: WNMG 080412E-NF T9315

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 8

Shape: Trigon

Thickness: 4.76 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on both sides
NF chipbreaker - sharp and positive chipbreaker specially designed for stainless steel
Excellent chip formation ability
Low cutting forces increase suitability in unstable machine set-ups
High productivity
High durability and reliability as a result of combination materials

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, WNMG Insert, 433 Insert, Trigon, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 4.76 mm Thickness, 8 Seat, Negative Rake, NF Chipbreaker, 1.2 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: WNMG 433-NF T9315, ISO Code: WNMG 080412E-NF T9315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel
