Pramet 6834724 Turning Insert, ANSI Code: VNMG 332-NF T9315, VNMG Insert, Material Grade: H, K, P, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816034724

MFG #6834724

UPC #3603603012868

Pramet Turning Insert, VNMG Insert, 332 Insert, Diamond, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Negative Rake, NF Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: VNMG 332-NF T9315, ISO Code: VNMG 160408E-NF T9315, 35 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

$17.68

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: VNMG 332-NF T9315

Chipbreaker: NF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 3.81 mm

Included Angle: 35 deg

Inscribed Circle: 9.525 mm

Insert Size: 332

Insert Style: VNMG

ISO Code: VNMG 160408E-NF T9315

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 16

Shape: Diamond

Thickness: 4.76 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut
Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on both sides

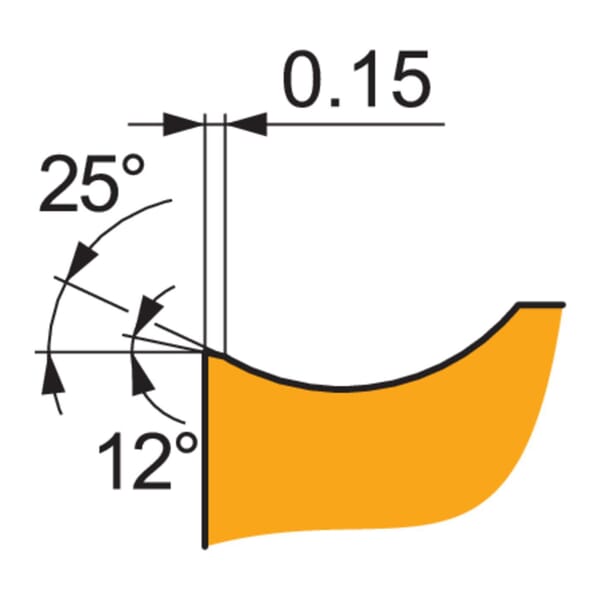

NF chipbreaker - sharp and positive chipbreaker specially designed for stainless steel
Excellent chip formation ability
Low cutting forces increase suitability in unstable machine set-ups
High productivity
High durability and reliability as a result of combination materials
