Pramet 6834713 Turning Insert, ANSI Code: TNMG 332-NF T8330, TNMG Insert, Material Grade: H, K, M, N, P, S, 332 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, Carbide, Manufacturers Grade: T8330

ManufacturerPramet

Part #816034713

MFG #6834713

UPC #3603603012752

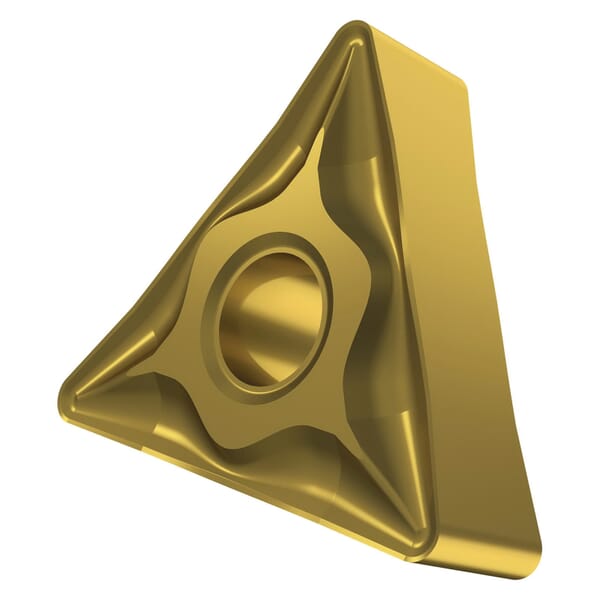

Pramet Turning Insert, TNMG Insert, 332 Insert, Triangular, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3/16 in Thickness, 16.5 mm Length, 16 Seat, Negative Rake, NF Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: T8330, ANSI Code: TNMG 332-NF T8330, ISO Code: TNMG 160408E-NF T8330, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

$9.40

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: TNMG 332-NF T8330

Chipbreaker: NF

Corner Radius: 0.8 mm

Country of Origin: CZ

Cutting Direction: Neutral

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 3.81 mm

Included Angle: 60 deg

Inscribed Circle: 9.525 mm

Insert Size: 332

Insert Style: TNMG

ISO Code: TNMG 160408E-NF T8330

Length: 16.5 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8330

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 16

Shape: Triangular

Thickness: 3/16 in

T8330 grade sub-micron substrate with a relatively high cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Medium cutting speeds
Good operative reliability
Impaired machining conditions
Rounded edges

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, TNMG Insert, 332 Insert, Triangular, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3/16 in Thickness, 16.5 mm Length, 16 Seat, Negative Rake, NF Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: T8330, ANSI Code: TNMG 332-NF T8330, ISO Code: TNMG 160408E-NF T8330, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys
