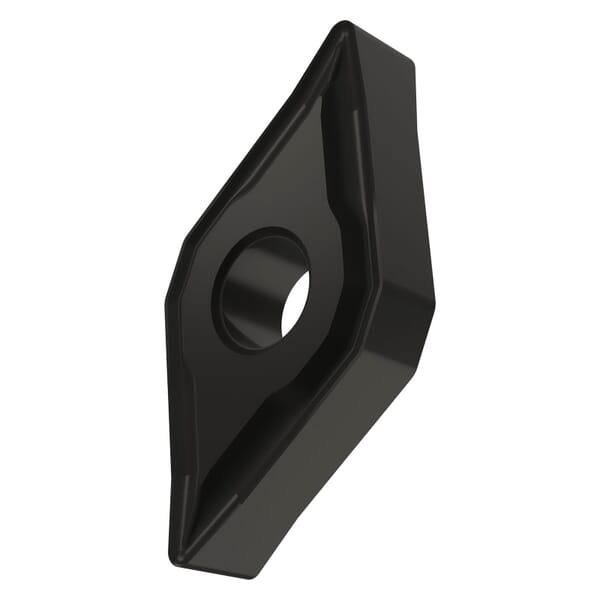

Pramet 6834673 Turning Insert, ANSI Code: DNMG 431-NF T9315, DNMG Insert, Material Grade: H, K, P, 431 Insert, Diamond Shape, 15 Seat, Negative Rake, For Use On Cast Iron, Hardened Steel and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816034673

MFG #6834673

UPC #3603603012356

Pramet Turning Insert, DNMG Insert, 431 Insert, Diamond, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15.5 mm Length, 15 Seat, Negative Rake, NF Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: DNMG 431-NF T9315, ISO Code: DNMG 150404E-NF T9315, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel

$16.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DNMG 431-NF T9315

Chipbreaker: NF

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: CVD-Al2O3 Coated

For Use On: Cast Iron, Hardened Steel and Steel

Hole Diameter: 5.16 mm

Included Angle: 55 deg

Inscribed Circle: 12.7 mm

Insert Size: 431

Insert Style: DNMG

ISO Code: DNMG 150404E-NF T9315

Length: 15.5 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 15

Shape: Diamond

Thickness: 4.76 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
Higher cutting speeds
Continuous to slightly interrupted cut
