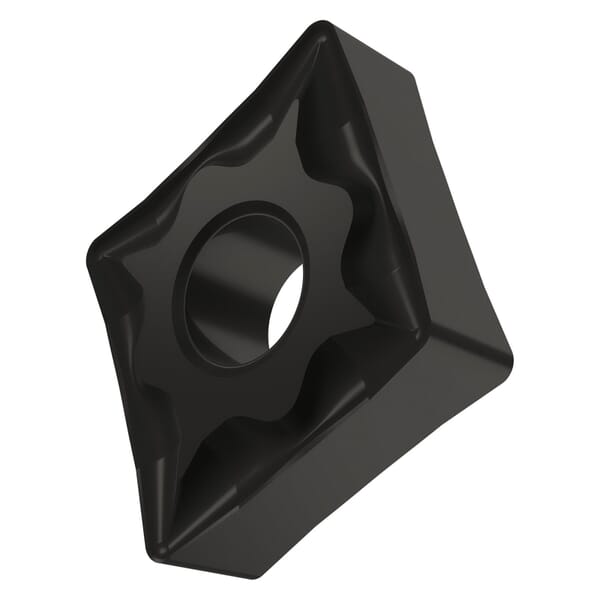

Pramet 6834662 Turning Insert, ANSI Code: CNMG 433-NF:T9325, CNMG Insert, Material Grade: K, M, P, S, 433 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6834662 Turning Insert, ANSI Code: CNMG 433-NF:T9325, CNMG Insert, Material Grade: K, M, P, S, 433 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide

ManufacturerPramet

Part #816034662

MFG #6834662

UPC #3603603012240

Pramet Turning Insert, CNMG Insert, 433 Insert, Diamond, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Negative Rake, NF Chipbreaker, 1.2 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9325, ANSI Code: CNMG 433-NF:T9325, ISO Code: CNMG 120412E-NF:T9325, 80 deg Included Angle, 0 deg Relief Angle, Carbide, MT-CVD Coated, Material Grade: K, M, P, S, For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

$10.97

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 433-NF:T9325

Chipbreaker: NF

Corner Radius: 1.2 mm

Country of Origin: CZ

Finish: MT-CVD Coated

For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 12.7 mm

Insert Size: 433

Insert Style: CNMG

ISO Code: CNMG 120412E-NF:T9325

Length: 12.9 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9325

Material: Carbide

Material Grade: K, M, P, S

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 4.76 mm

T9325 grade functionally gradient substrate
Relatively low content of cobalt binder phase
Thick MT-CVD coating
Highly versatile material with very good operational reliability
Special surface finish for coating
Medium and higher cutting speed
Continuous and interrupted cut
Unfavorable cutting conditions, continuous and/or interrupted cuts

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Specification Sheet

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 433-NF:T9325

Chipbreaker: NF

Corner Radius: 1.2 mm

Country of Origin: CZ

Finish: MT-CVD Coated

For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 80 deg

Inscribed Circle: 12.7 mm

Insert Size: 433

Insert Style: CNMG

ISO Code: CNMG 120412E-NF:T9325

Length: 12.9 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9325

Material: Carbide

Material Grade: K, M, P, S

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 4.76 mm

T9325 grade functionally gradient substrate
Relatively low content of cobalt binder phase
Thick MT-CVD coating
Highly versatile material with very good operational reliability
Special surface finish for coating
Medium and higher cutting speed
Continuous and interrupted cut
Unfavorable cutting conditions, continuous and/or interrupted cuts

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Specification Sheet
