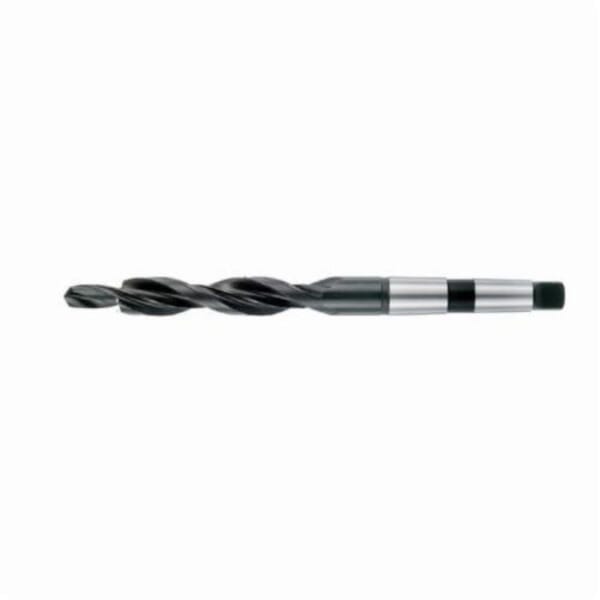

Dormer 5970310 A405 Extra Length Subland Step Drill, 17.5 mm Dia Min Hole, 26 mm Dia Max Hole, HSS

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5970310 A405 Extra Length Subland Step Drill, 17.5 mm Dia Min Hole, 26 mm Dia Max Hole, HSS

ManufacturerDormer

Part #816034637

MFG #0034637

UPC #7320760034637

Dormer Subland Step Drill, Extra Length, Series: A405, Metric, 17.5 mm Diameter Minimum Hole, 26 mm Diameter Maximum Hole, 286 mm Overall Length, 4XD Cutting Depth, 35 mm Step Depth, Spiral Flute, 165 mm Flute Length, #3 Morse Taper Shank, 118 deg Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Applicable Materials: Aluminum, Magnesium, Cast Iron, Copper, Nickel, Stainless Steel, Steel Alloy, Titanium and Synthetic Material

$270.80

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Aluminum, Magnesium, Cast Iron, Copper, Nickel, Stainless Steel, Steel Alloy, Titanium and Synthetic Material

Country of Origin: DE

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Metric

Finish: Steam Tempered

Flute Length: 165 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Maximum Hole Diameter: 26 mm

Minimum Hole Diameter: 17.5 mm

Overall Length: 286 mm

Point Angle: 118 deg

Series: A405

Shank Type: #3 Morse Taper

Step Depth: 35 mm

Type: Extra Length

No coolant channel
Included Angle 180 deg

General Purpose Applications

DIN 8377
