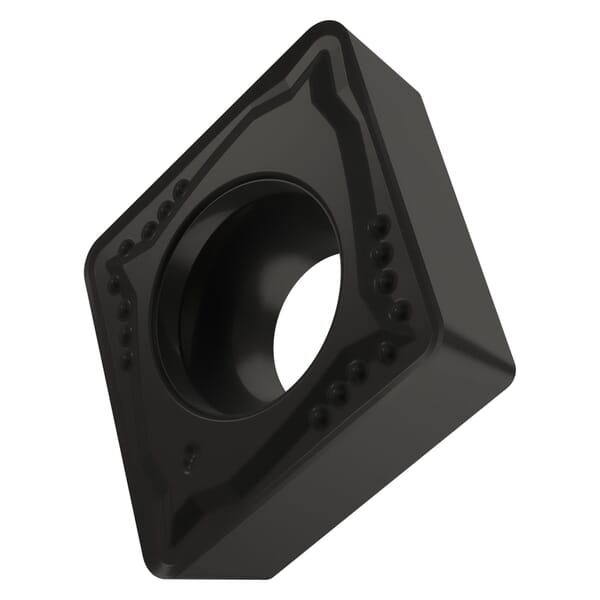

Pramet 7034005 Turning Insert, ANSI Code: CCMT 32.52W-FM:T9315, CCMT Insert, Material Grade: H, K, P, 32.52 Insert, Diamond Shape, 9 Seat, Positive Rake, For Use On Cast Iron, Hardened Steel and Steel, Carbide, Manufacturers Grade: T9315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 7034005 Turning Insert, ANSI Code: CCMT 32.52W-FM:T9315, CCMT Insert, Material Grade: H, K, P, 32.52 Insert, Diamond Shape, 9 Seat, Positive Rake, For Use On Cast Iron, Hardened Steel and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816034005

MFG #7034005

UPC #3603603108080

Pramet Turning Insert, CCMT Insert, 32.52 Insert, Diamond, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.97 mm Thickness, 9.7 mm Length, 9 Seat, Positive Rake, FM Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: CCMT 32.52W-FM:T9315, ISO Code: CCMT 09T308W-FM:T9315, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel

$10.30

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CCMT 32.52W-FM:T9315

Chipbreaker: FM

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD-Al2O3 Coated

For Use On: Cast Iron, Hardened Steel and Steel

Hole Diameter: 4.5 mm

Included Angle: 80 deg

Inscribed Circle: 9.525 mm

Insert Size: 32.52

Insert Style: CCMT

ISO Code: CCMT 09T308W-FM:T9315

Length: 9.7 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 9

Shape: Diamond

Thickness: 3.97 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

Pramet Turning Insert, CCMT Insert, 32.52 Insert, Diamond, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.97 mm Thickness, 9.7 mm Length, 9 Seat, Positive Rake, FM Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: CCMT 32.52W-FM:T9315, ISO Code: CCMT 09T308W-FM:T9315, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: CCMT 32.52W-FM:T9315

Chipbreaker: FM

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD-Al2O3 Coated

For Use On: Cast Iron, Hardened Steel and Steel

Hole Diameter: 4.5 mm

Included Angle: 80 deg

Inscribed Circle: 9.525 mm

Insert Size: 32.52

Insert Style: CCMT

ISO Code: CCMT 09T308W-FM:T9315

Length: 9.7 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 9

Shape: Diamond

Thickness: 3.97 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

Pramet Turning Insert, CCMT Insert, 32.52 Insert, Diamond, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.97 mm Thickness, 9.7 mm Length, 9 Seat, Positive Rake, FM Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: CCMT 32.52W-FM:T9315, ISO Code: CCMT 09T308W-FM:T9315, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Cast Iron, Hardened Steel and Steel

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog
