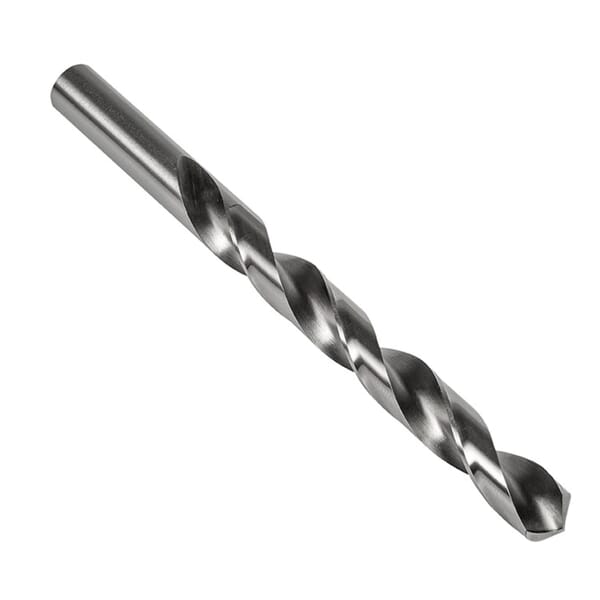

Dormer 5966722 A100 Type N General Purpose Jobber Length Drill Bit, #70 Drill - Wire, 0.028 in Drill - Decimal Inch, 118 deg Point, HSS, Steam Tempered

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5966722 A100 Type N General Purpose Jobber Length Drill Bit, #70 Drill - Wire, 0.028 in Drill - Decimal Inch, 118 deg Point, HSS, Steam Tempered

ManufacturerDormer

Part #816029374

MFG #0029374

UPC #7320760029374

Dormer Jobber Length Drill Bit, Type N General Purpose, Series: A100, Imperial, #70 Drill - Wire, 0.028 in Drill - Decimal Inch, 28 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 9 mm Flute Length, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Plain Carbon Steel, Alloy Steel, Lamellar Graphite, Titanium, Alloyed and Cermet

$4.55

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Plain Carbon Steel, Alloy Steel, Lamellar Graphite, Titanium, Alloyed and Cermet

Color: Dark Gray

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.028 in

Drill Size - Wire: #70

Finish: Steam Tempered

Flute Length: 9 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 28 mm

Point Angle: 118 deg

Point Type: Split/Self-Centering

Series: A100

Shank Type: Straight

Through Coolant (Yes/No): No

Type: Type N General Purpose

High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials
Oxide prevents chip building, galling and welding on the workpiece
It is commonly used on low carbons, stainless steel and ferrous metals
Spiral flutes are constructed with a higher flute angle to remove chips more easilyregular helix formtapered web configuration
No coolant channel

For general drilling applications

DIN 338

Catalog

Manufacturer Name: Dormer Pramet

Applicable Materials: Plain Carbon Steel, Alloy Steel, Lamellar Graphite, Titanium, Alloyed and Cermet

Color: Dark Gray

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.028 in

Drill Size - Wire: #70

Finish: Steam Tempered

Flute Length: 9 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 28 mm

Point Angle: 118 deg

Point Type: Split/Self-Centering

Series: A100

Shank Type: Straight

Through Coolant (Yes/No): No

Type: Type N General Purpose

High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials
Oxide prevents chip building, galling and welding on the workpiece
It is commonly used on low carbons, stainless steel and ferrous metals
Spiral flutes are constructed with a higher flute angle to remove chips more easilyregular helix formtapered web configuration
No coolant channel

For general drilling applications

DIN 338

Catalog
