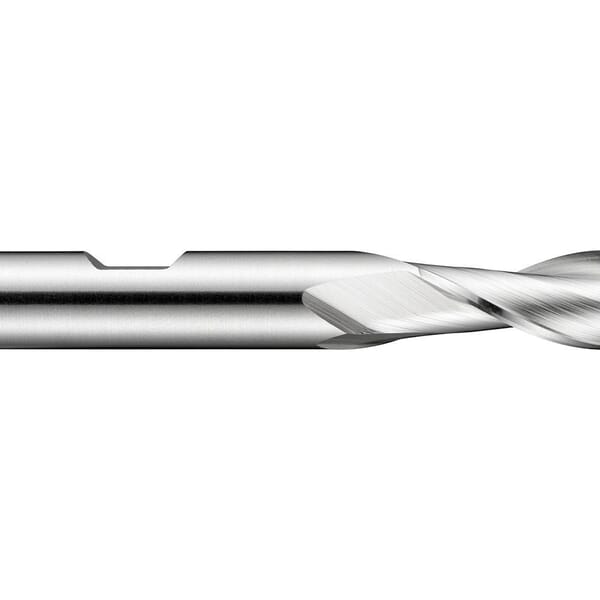

Dormer 5985506 C505 Type N Ball Nose Short Length Single End End Mill, 4 mm Dia Cutter, 11 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 55 mm OAL, Bright

ManufacturerDormer

Part #816026998

MFG #0126998

UPC #7320760126998

Dormer End Mill, Type N Ball Nose Short Length Single End, Series: C505, 4 mm Diameter Cutter, 55 mm Overall Length, 11 mm Length of Cut, 2 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, Bright

$48.18

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Country of Origin: PL

Cutter Diameter: 4 mm

Cutting Direction: Right Hand

Finish: Bright

Flute Type: Spiral

Helix Angle: 30 deg

Length of Cut: 11 mm

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 55 mm

Series: C505

Shank Diameter: 6 mm

Shank Type: Weldon Flat

Type: Type N Ball Nose Short Length Single End

20 Lifecycle
Applicable materials are magnetic soft steel, structural, case carburizing steel, cast iron, copper, aluminum and titanium
2 mm radius
12 deg of rake
E8 mill dia tolerance

DIN 1835B|DIN 844K|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

For slotting and ramping operations
