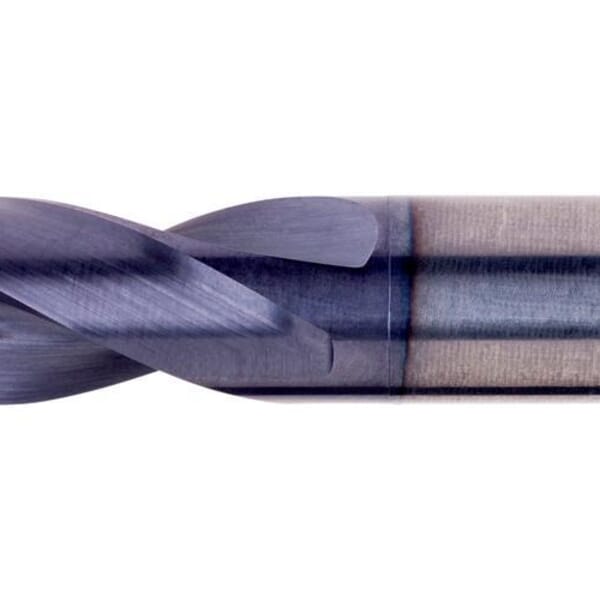

Dormer 7625117 FORCE M R467 High Performance Short Length Drill Bit, 4.2 mm Drill - Metric, 0.1653 in Drill - Decimal Inch, Carbide, TiAlN Coated

ManufacturerDormer

Part #816025117

MFG #7625117

UPC #7320760836248

Dormer Short Length Drill Bit, High Performance, Series: FORCE M R467, Metric, 4.2 mm Drill - Metric, 0.1653 in Drill - Decimal Inch, 2.5984 in Overall Length, 3XD Cutting Depth, 24 mm Flute Length, 6 mm Dia x 36 mm L Shank, Reinforced Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Nickel, Stainless Steel and Titanium

$117.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Nickel, Stainless Steel and Titanium

Country of Origin: BR

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Metric

Drill Size - Decimal Inch: 0.1653 in

Drill Size - Metric: 4.2 mm

Finish: TiAlN Coated

Flute Length: 24 mm

Manufacturer Name: Dormer Pramet

Material: Carbide

Overall Length: 2.5984 in

Point Angle: 140 deg

Point Type: 4-Facet/Self-Centering/Split

Series: FORCE M R467

Shank Size: 6 mm Dia x 36 mm L

Shank Type: Reinforced

Type: High Performance

These drills are problem solvers, providing high productivity and consistent performance and repeatability in multi-applications across diverse machines and conditions, this makes them the ideal choice for general engineering and sub-contract environments
Modified 4-facet split point improves chip formation, strength and wear‐resistance
Consistent edge preparation provides predictable wear and operator confidence
The family offers ranges of TiAlN coated drills in a variety of lengths, in solid and coolant feed variants
The new Force M drills are ideally suited for high performance drilling of large numbers of holes in ISO M materials
CTW flute construction - continuously thinned web technology provides a very strong web design whilst at the same time reducing thrust forces during drilling

General Drilling Applications

DIN 6537 K|DIN 6535 HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
