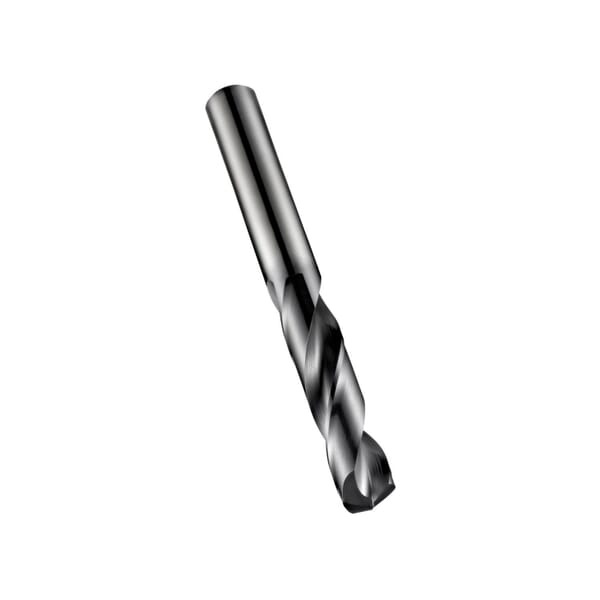

Dormer 5981103 R458 Multi-Application Short Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, Carbide, TiAlN Coated

ManufacturerDormer

Part #816025033

MFG #0625033

UPC #7320760625033

Dormer Short Length Drill Bit, Multi-Application, Series: R458, Imperial, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 66 mm Overall Length, 3XD Cutting Depth, 2 Flutes, CTW Flute, 28 mm Flute Length, 6 mm Dia x 36 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiAlN Coated, Black Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed

$75.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Color: Black Gray

Country of Origin: BR

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.1875 in

Drill Size - Fraction: 3/16 in

Finish: TiAlN Coated

Flute Length: 28 mm

Flute Type: CTW

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 66 mm

Point Angle: 140 deg

Point Type: 4-Facet/Self-Centering/Split

Series: R458

Shank Size: 6 mm Dia x 36 mm L

Shank Type: Straight

Type: Multi-Application

Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials
Coolant channels through the tool provide effective coolant delivery, reducing the temperature in the cutting zone and assisting chip evacuation, enabeling incresaed tool life at accelerated cutting data
Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate

For general drilling applications

DIN 6537K|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
