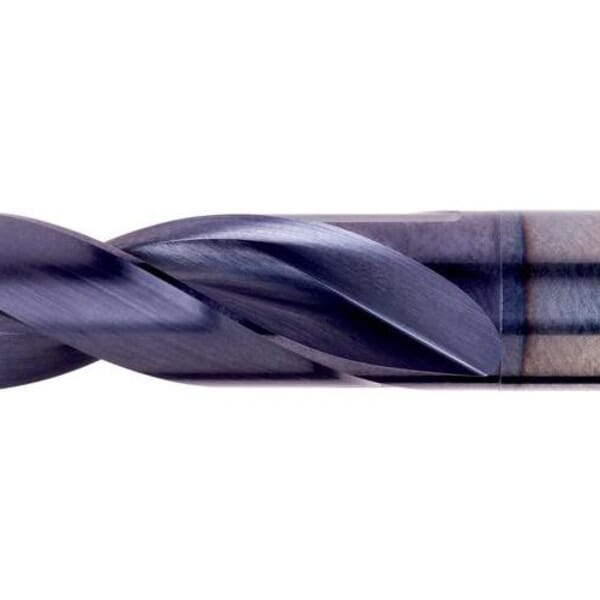

Dormer 7625007 FORCE M R463 High Performance Standard Length Jobber Drill Bit, 6.8 mm Drill - Metric, 0.2677 in Drill - Decimal Inch, 140 deg Point, Carbide, TiAlN Coated

ManufacturerDormer

Part #816025007

MFG #7625007

UPC #7320760835142

Dormer Jobber Drill Bit, High Performance Standard Length, Series: FORCE M R463, Metric, 6.8 mm Drill - Metric, 0.2677 in Drill - Decimal Inch, 3.5826 in Overall Length, 5XD Cutting Depth, 53 mm Flute Length, 8 mm Dia x 36 mm L Shank, Reinforced Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Yes Through Coolant, Carbide, TiAlN Coated, Applicable Materials: Nickel, Stainless Steel and Titanium

$163.58

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Nickel, Stainless Steel and Titanium

Country of Origin: BR

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Metric

Drill Size - Decimal Inch: 0.2677 in

Drill Size - Metric: 6.8 mm

Finish: TiAlN Coated

Flute Length: 53 mm

Manufacturer Name: Dormer Pramet

Material: Carbide

Overall Length: 3.5826 in

Point Angle: 140 deg

Point Type: 4-Facet/Self-Centering/Split

Series: FORCE M R463

Shank Size: 8 mm Dia x 36 mm L

Shank Type: Reinforced

Through Coolant (Yes/No): Yes

Type: High Performance Standard Length

These drills are problem solvers, providing high productivity and consistent performance and repeatability in multi-applications across diverse machines and conditions, this makes them the ideal choice for general engineering and sub-contract environments
Modified 4-facet split point improves chip formation, strength and wear‐resistance
Consistent edge preparation provides predictable wear and operator confidence
The family offers ranges of TiAlN coated drills in a variety of lengths, in solid and coolant feed variants
The new Force M drills are ideally suited for high performance drilling of large numbers of holes in ISO M materials
CTW flute construction - continuously thinned web technology provides a very strong web design whilst at the same time reducing thrust forces during drilling

General Drilling Applications

DIN 6537 L|DIN 6535 HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
